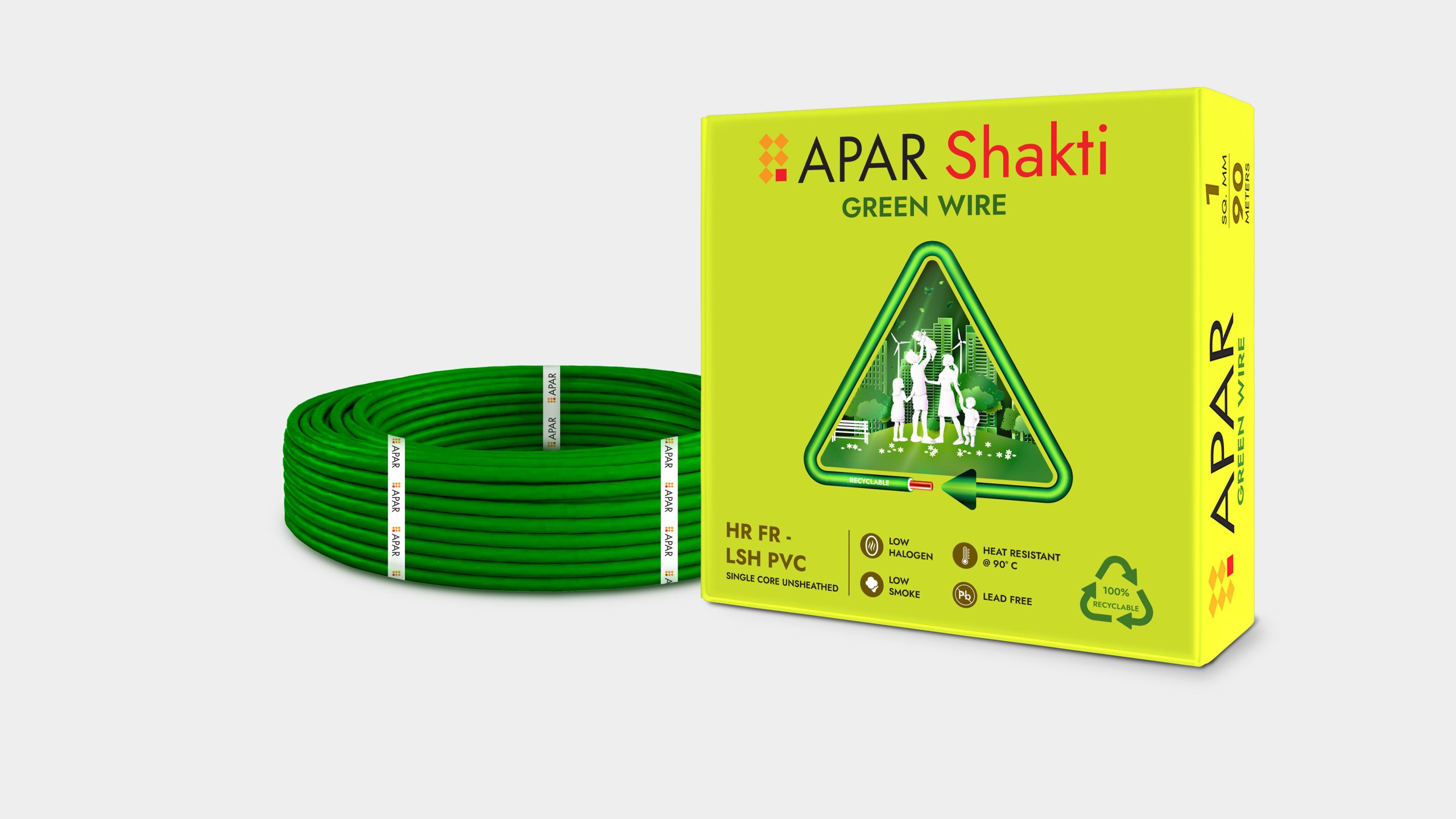

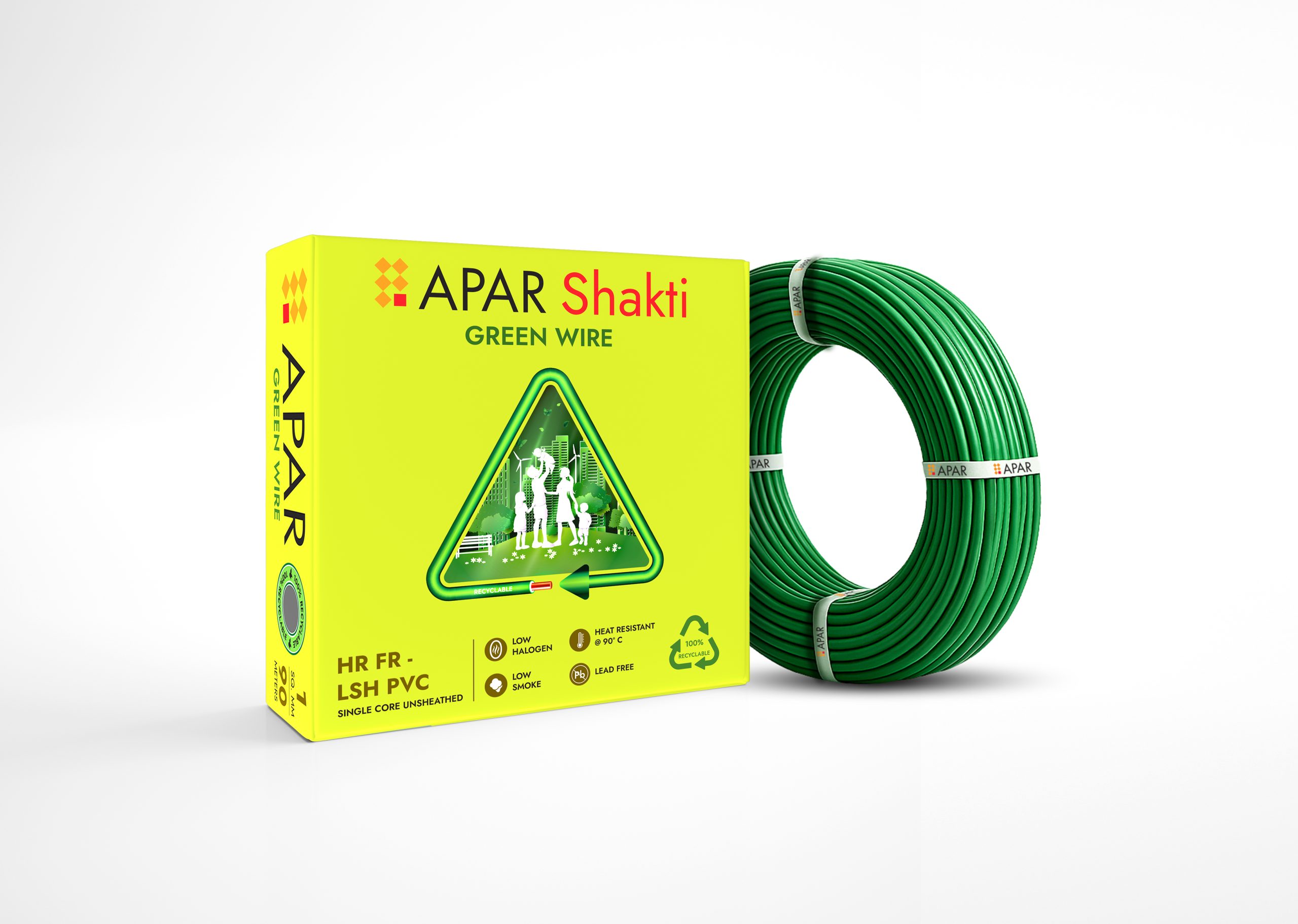

Green Wire HR FR LSH PVC

APAR SHAKTI” Single-Core Green Wire is built for safe and steady performance across a wide range of electrical needs. It uses a flexible copper conductor for smooth installation and reliable current flow. The HR FR-LSH PVC insulation offers high heat resistance, strong flame retardance, and low smoke and halogen emission, which helps protect people and equipment during a fire.

This wire supports low-voltage signals, electrical motors, appliances, control panels, transformers, electrical distribution boards, and battery circuits. Its high thermal stability and insulation resistance ensure stable operation under load, while its fire-safe design helps reduce risk in demanding environments.

It is a dependable choice for modern electrical systems that need durability, clean performance, and enhanced safety.

Features & Advantages

MOISTURE RESISTANCE

Works reliably even in humid or damp conditions.

99.97% PURITY OF COPPER

Delivers strong and steady current flow with minimal loss.

ROHS COMPLIANT

Free from restricted hazardous substances for safer use.

RODENT PROTECTION

Built to resist rodent damage and reduce downtime.

REACH COMPLIANT

Meets strict safety norms for human and environmental health.

ENERGY SAVING

Reduces power loss for better electrical efficiency.

101% CONDUCTIVITY

Offers superior conductivity for smoother performance.

LOW TOXIC FUMES

Releases fewer harmful fumes if exposed to fire.

HIGH ABRASION RESISTANCE

Withstands friction and wear in tough conditions.

FLAME RETARDANT

Slows flame spread to improve safety.

RoHS COMPLIANCE

CONTENTS

VALUES

CADMIUM (Cd) CONTENT

Max 100 ppm

LEAD (pb) CONTENT

Max 1000 ppm

MERCURY (Hg) CONTENT

Max 1000 ppm

CHROMIUM (VI) CONTENT

Max 1000 ppm

RoHS Requirement for Brominated flame retardant POLY BROMINATED BIPHENYLS (PBBs)

Max 1000 ppm

FR-LSH PROPERTIES

Test

Specification Values

Temperature Index

≥ 250° C

Oxygen Index

≥ 29%

Smoke density (Light absorption)

≤ 60%

Acid gas generation

≤ 20%

Single Core Unsheathed HR FR-LSH PVC Insulated Copper cable 1100 V as per IS 694

Nominal Area of copper Flexible conductor	Conductor Construction (No./ Dia of Strands)	Thickness of Insulation (Nominal)	Approx. Overall Diameter	Conductor Resistance (Max) at 20°C
Sq.mm	No./mm	mm	mm	Ohm/Km
0.5	16/0.20	0.6	2.2	39
0.75	24/0.20	0.6	2.4	26
1	32/0.20	0.6	2.6	19.5
1.5	30/0.25	0.6	2.8	13.3
2.5	50/0.25	0.7	3.4	7.98
4	56/0.30	0.8	4.1	4.95
6	84/0.30	0.8	4.7	3.30
