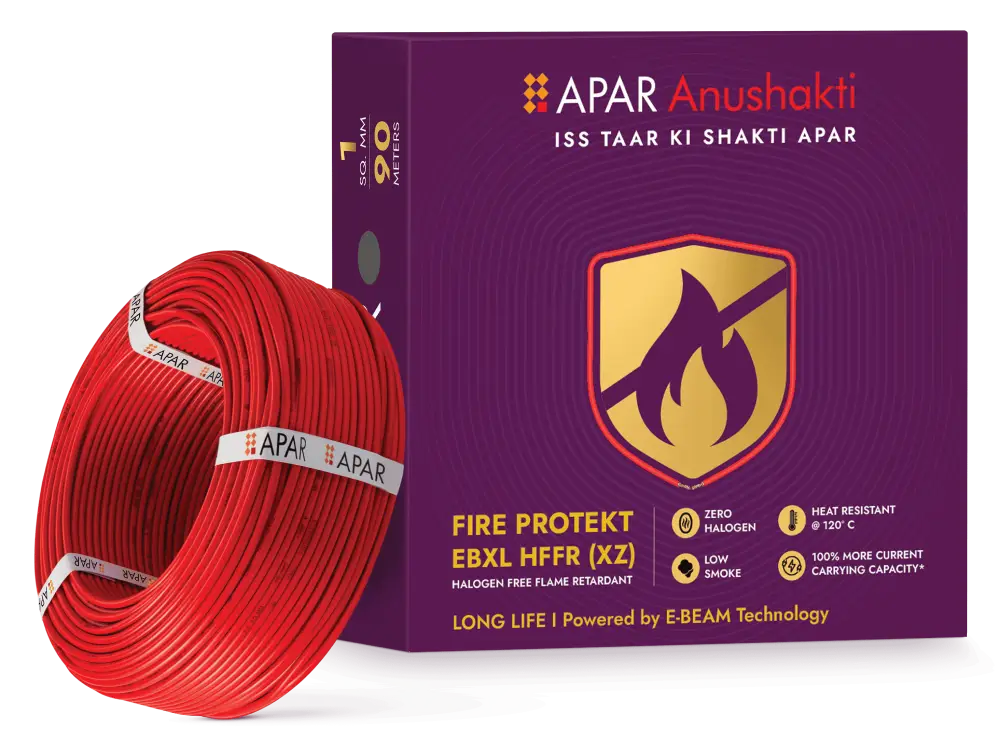

Fire Protekt EBXL HFFR (XZ)
Introducing “APAR Anushakti Fire Protekt,” our groundbreaking product designed with safety as the highest priority which has undergone rigorous testing for quality and longevity are manufactured using Electron Beam Technology (E-beam). This innovative wire surpasses conventional ones by offering a remarkable 100%* increase in current carrying capacity as well as enhanced resistance to higher temperatures with low smoke and zero halogen features.
Melt Resistant
The insulation does not quickly melt while in contact with a hot object.
Short Circuit Protection
Max Short Circuit Temperature Rating 250° C.
Zero Halogen
Minimizing environmental impact, ensuring safety, and promoting sustainable electrical systems
Heat Resistance
The insulation with a higher operating Temperature of 120° C.
Features & Advantages
With its superior performance and eco-friendly nature, APAR Anushakti Fire Protekt establishes itself as the safest house wire option in India.
APAR Anushakti insulation does not melt and drip easily and has high dielectric strength offering high insulation resistance. It offers a high critical oxygen index (>=31%) and high-temperature index (>=250°C), which helps to restrict the spread of fire and improves self-extinguishing properties.
Current Carrying Capacity
100% More Current Carrying Capacity*.
Operating Temperature
Operating Temperature: -30°C to +120°C.
Anti Termite
Effective defence against termites with advanced anti-termite solutions.
Low Smoke
Enhancing fire safety by reducing smoke emissions, protecting lives, and preserving critical infrastructure.
Technical Characteristics & Standards
| Test | Specification Values |
|---|---|
| Temperature Index | ≥ 250°C |
| Oxygen Index | ≥ 31% |
| Smoke Density Rating | ≤ 10% |
| Acid Gas Generation | ≤ 0.5% |
| Nominal Area of Conductor | Conductor Construction | Thickness of Insulation (Nominal) | Approx Overall Diameter | Conductor Resistance (Max) Per KM@ 20°C | In Conduit / Trunking | Unenclosed - Clipped Directly to surface or on Cable Tray |
|---|---|---|---|---|---|---|
| Sq.mm | No./ Max Dia.mm | mm | mm | Ohms | Amps | Amps |
| 0.75 | 24 / 0.21 | 0.6 | 2.30 | 26.0 | 18 | 21 |
| 1 | 32 / 0.21 | 0.6 | 2.50 | 19.5 | 22 | 26 |
| 1.5 | 30 / 0.26 | 0.6 | 2.70 | 13.3 | 27 | 34 |
| 2.5 | 50 / 0.26 | 0.7 | 3.40 | 7.98 | 36 | 46 |
| 4 | 56 / 0.31 | 0.8 | 4.00 | 4.95 | 49 | 60 |
| 6 | 84 / 0.31 | 0.8 | 4.60 | 3.30 | 64 | 78 |
Frequently asked questions
What makes APAR Anushakti Fire Protekt different from regular house wires?
APAR Anushakti Fire Protekt is manufactured using advanced Electron Beam Technology (E-beam) and offers 100% more current carrying capacity, zero halogen properties, and superior fire resistance compared to conventional wires.
Is this wire suitable for all residential applications?
Yes, APAR Anushakti Fire Protekt is designed for comprehensive residential use and meets all safety standards for house wiring applications.
What certifications does this product have?
The product complies with IS 694:2010 standards and has undergone rigorous testing for quality, safety, and performance.
