Multicore Cables · Aluminium

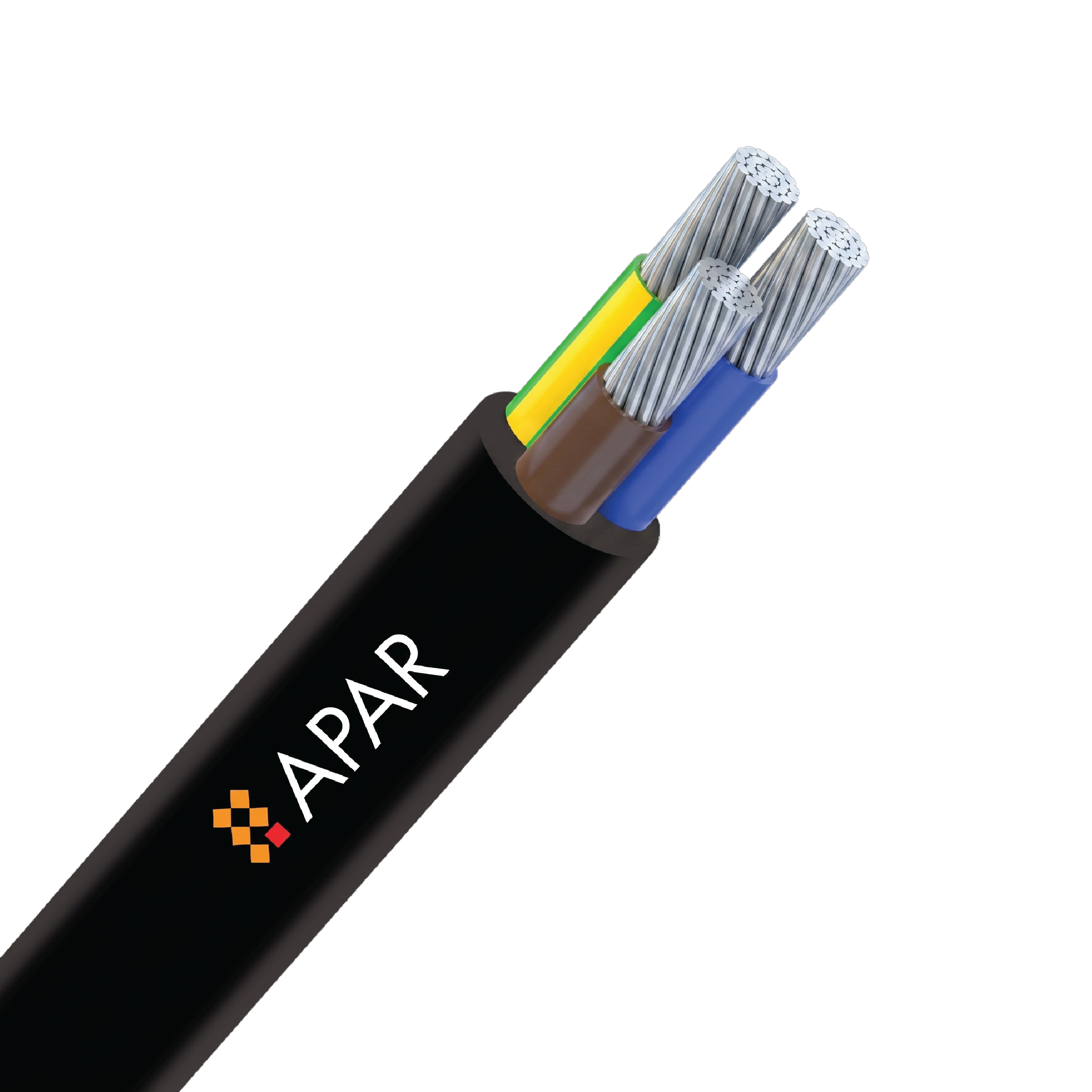

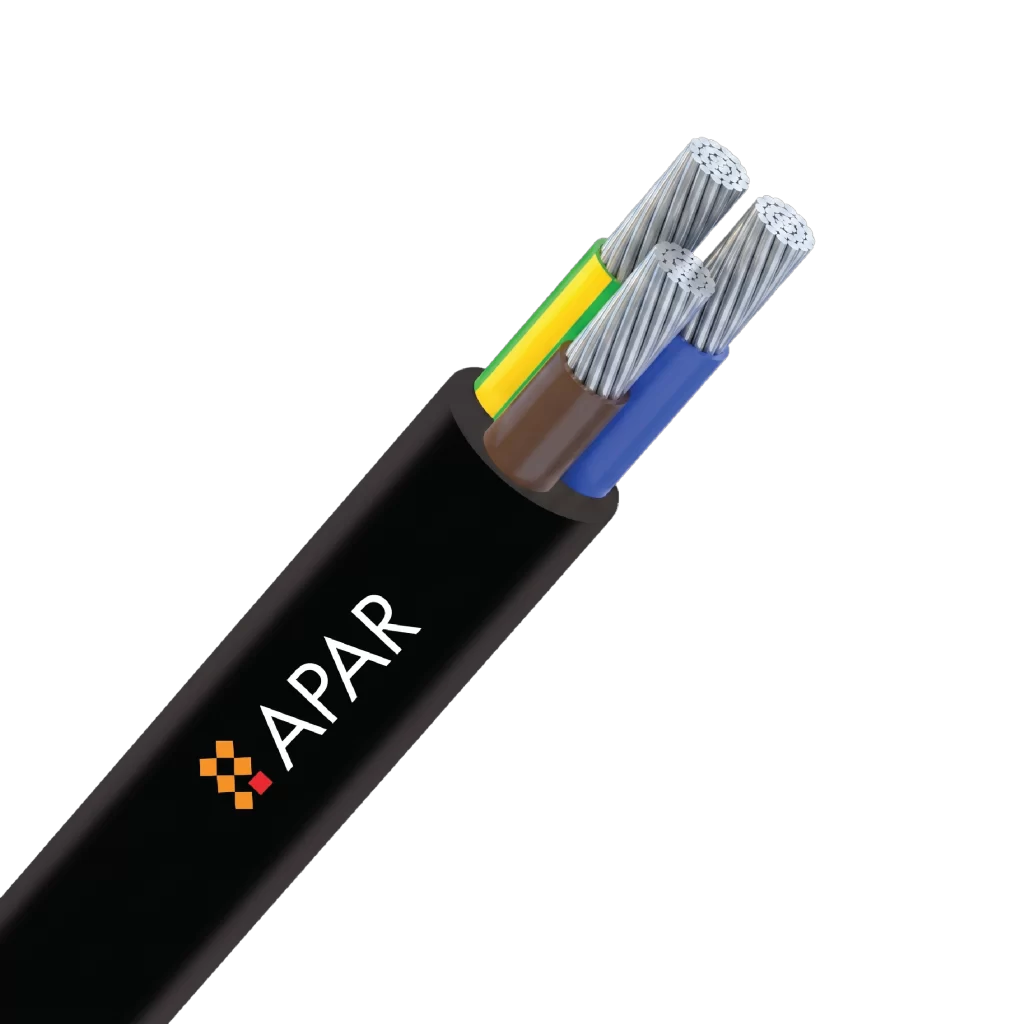

APAR Alumshakti Round Multicore
Economical aluminium-conductor round multicore — HR PVC insulated.
ConductorStranded aluminium
InsulationHR PVC
Cores2 / 3 / 4 core
Sizes1.5 – 16 sq mm
✓ ISI / BIS
✓ RoHS
✓ REACH
Description
OverviewAlumshakti Round Multicore is built with stranded aluminium conductors, HR PVC insulation on each core and an HR PVC outer sheath. Available in 2, 3 and 4 core from 1.5 to 16 sq mm, it is a cost-effective, lightweight choice for distribution and pump applications.
APAR Alumshakti Round Multicore uses a stranded bare aluminium conductor with heat-resistant PVC insulation and sheath, offering a lightweight, economical solution for power distribution and motor connections where aluminium conductors are preferred.
Why this wire
Key benefits Cost effective Aluminium at a lower price per metre.
Round profile Easy pulling through conduit.
Heat resistant HR PVC insulation.
Lightweight Easier to handle on site.
Sheathed Extra mechanical protection.
ISI marked Made to IS 694:2010.
Characteristics
At a glance| Application | Economical power distribution, motor connections, pumps and sub-mains wiring. |
|---|---|
| Characteristics | Stranded aluminium conductor with HR PVC insulation and sheath; lightweight and cost-effective. |
| Cores & colour | 2, 3 and 4 core; black outer sheath (table shows 3-core; 2 and 4 core also available). |
| Product range | 1.5 – 16 sq mm. |
| Packing | 100 m coil, 500 m and 1000 m drums. |

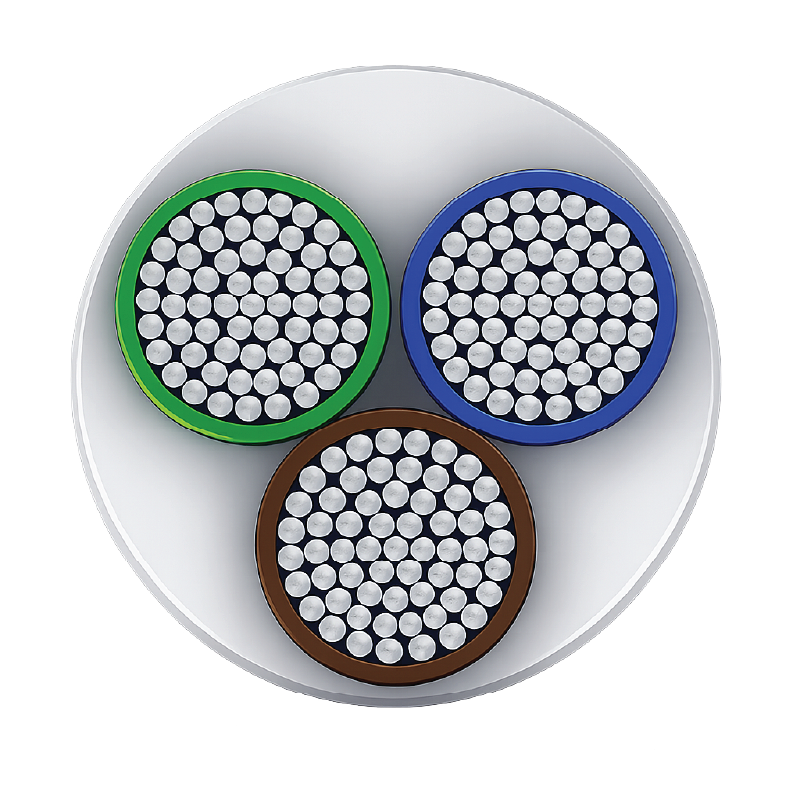

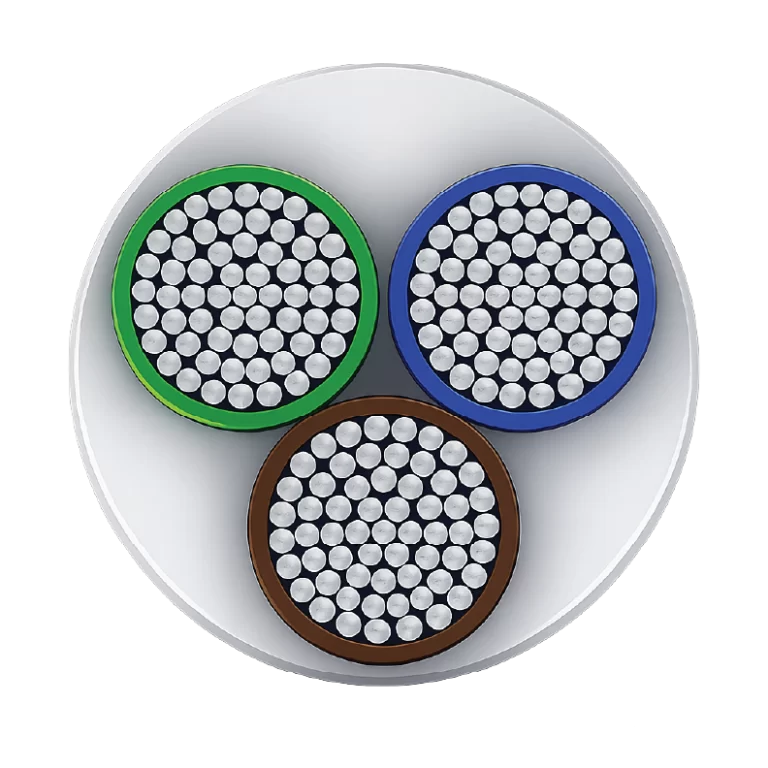

Construction
Cutaway
- 1Stranded aluminium conductorLightweight, economical stranded aluminium
- 2HR PVC insulationHeat-resistant PVC insulation on each core
- 3HR PVC sheathHeat-resistant PVC outer sheath
Dimensions & ratings
Technical dataConductor & current rating (3-core)
| Cores × Size | Insulation (mm) | Sheath (mm) | O.D. (mm) | Resistance (Ω/km) | Current (A) |
|---|---|---|---|---|---|
| 3 x 1.5 | 0.6 | 0.9 | 8.3 | 18.1 | 11 |
| 3 x 2.5 | 0.7 | 1.0 | 9.9 | 12.1 | 14 |
| 3 x 4 | 0.8 | 1.1 | 11.7 | 7.41 | 19 |
| 3 x 6 | 0.8 | 1.1 | 13.4 | 4.61 | 23 |
| 3 x 10 | 1.0 | 1.2 | 16.5 | 3.08 | 30 |
| 3 x 16 | 1.0 | 1.3 | 20.0 | 1.91 | 43 |
Standards & approvals
ComplianceManufactured and tested to IS 694:2010, the Indian Standard for PVC-insulated cables for working voltages up to and including 1100 V — which covers multicore cables with both copper and aluminium conductors. Every drum is ISI-marked and BIS-certified.
Aluminium conductors with heat-resistant PVC insulation and sheath.
IS 694:2010ISI / BISRoHSREACH
Printed on the cable
APAR ALUMSHAKTI ROUND MULTICORE · Aluminium · HR PVC
Applications
Where it's usedPower distributionMotor connectionsPumpsAgricultural equipmentSub-mains wiringPanels
Not sure which size you need?
Open calculator →Use the APAR Wire-Size Calculator to size a circuit in seconds.
Documents
DownloadsFAQs
Good to knowWhy choose an aluminium-conductor cable?+
Aluminium conductors are lighter and more economical than copper for the same current, making Alumshakti a cost-effective choice for distribution and sub-mains.
Which cores and sizes are available?+
2, 3 and 4 core from 1.5 to 16 sq mm; the table shows the 3-core range.
What insulation is used?+
Heat-resistant (HR) PVC insulation on each core with an HR PVC outer sheath.
