Multicore Cables · PVC

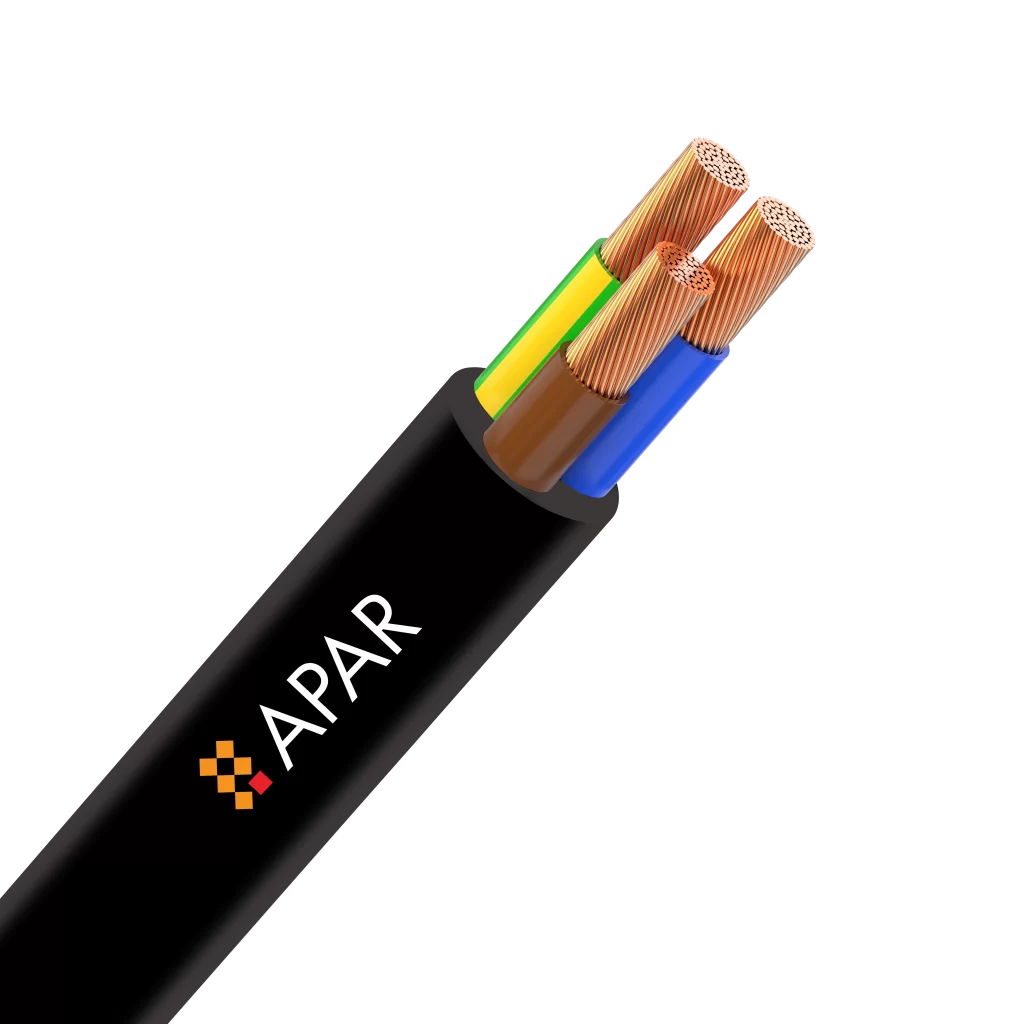

APAR Shakti Round Multicore
Flexible PVC-insulated and sheathed round multicore cable.
InsulationPVC
SheathPVC
Cores2 / 3 / 4 core
Sizes0.5 – 95 sq mm
✓ ISI / BIS
✓ RoHS
✓ REACH
Description
OverviewShakti Round Multicore is the PVC insulated and PVC sheathed round cable, the general purpose multicore that most installations use. Two, three and four core, from 0.5 right up to 95 sq mm, so one family covers a fan regulator drop and a distribution sub-main. Flexible copper conductors make it easy to dress into a panel.
This is the cable for motors, appliances, control panels and boards, and for pump connections where a round profile suits the run. The sheath protects the cores where the cable is exposed or run on tray, which is the practical difference between a multicore and three single core wires pulled through a conduit. It comes in 100 m coils and 500 or 1000 m drums, with a black outer sheath.
Why this wire
Key benefits Round profile Easy pulling through conduit.
Copper conductor Low resistance over long runs.
Sheathed Extra mechanical protection.
Flexible Handles repeated bending.
Water resistant Suited to damp locations.
ISI marked Made to IS 694:2010.
Characteristics
At a glance| Application | Low-voltage power and control connections for motors, appliances, control panels and boards. |
|---|---|
| Characteristics | PVC-insulated and PVC-sheathed; flexible, durable and easy to install. |
| Cores & colour | 2, 3 and 4 core; black outer sheath (table shows 3-core; 2 and 4 core also available). |
| Product range | 0.5 – 95 sq mm. |
| Packing | 100 m coil, 500 m and 1000 m drums. |

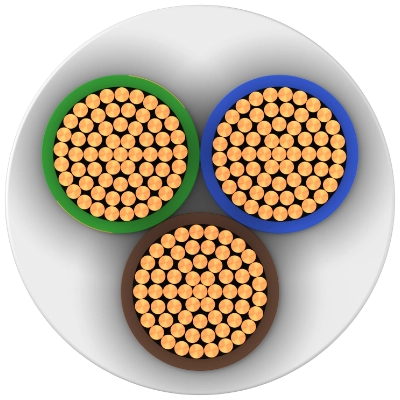

Construction
Cutaway
- 1Flexible copper conductorStranded electrolytic-grade bare copper
- 2PVC insulationFlame-retardant PVC with high insulation resistance
- 3PVC sheathDurable PVC outer sheath for mechanical protection
Dimensions & ratings
Technical dataConductor & current rating (3-core)
| Cores × Size | Construction (No./mm) | Insulation (mm) | Sheath (mm) | O.D. (mm) | Resistance (Ω/km) | Current (A) |
|---|---|---|---|---|---|---|
| 3 x 0.5 | 16/0.2 | 0.6 | 0.9 | 6.7 | 39.0 | 3 |
| 3 x 0.75 | 24/0.2 | 0.6 | 0.9 | 7.1 | 26.0 | 6 |
| 3 x 1 | 32/0.2 | 0.6 | 0.9 | 7.5 | 19.5 | 10 |
| 3 x 1.5 | 30/0.25 | 0.6 | 0.9 | 8.0 | 13.3 | 14 |
| 3 x 2.5 | 50/0.25 | 0.7 | 1.0 | 9.6 | 7.98 | 18 |
| 3 x 4 | 56/0.3 | 0.8 | 1.0 | 11.1 | 4.95 | 24 |
| 3 x 6 | 84/0.3 | 0.8 | 1.2 | 12.7 | 3.30 | 30 |
| 3 x 10 | 80/0.4 | 1.0 | 1.4 | 16.2 | 1.91 | 39 |
| 3 x 16 | 126/0.4 | 1.0 | 1.4 | 18.9 | 1.21 | 55 |
| 3 x 25 | 196/0.4 | 1.2 | 1.5 | 22.9 | 0.780 | 60 |
| 3 x 35 | 276/0.4 | 1.2 | 1.6 | 25.6 | 0.554 | 77 |
| 3 x 50 | 396/0.4 | 1.4 | 2.0 | 31.1 | 0.386 | 102 |
| 3 x 70 | 360/0.5 | 1.4 | 2.2 | 34.8 | 0.272 | 140 |
| 3 x 95 | 475/0.5 | 1.6 | 2.4 | 39.2 | 0.206 | 165 |
Standards & approvals
ComplianceManufactured and tested to IS 694:2010, the Indian Standard for PVC-insulated cables for working voltages up to and including 1100 V — which covers multicore cables with both copper and aluminium conductors. Every drum is ISI-marked and BIS-certified.
Flexible annealed bare copper conductors, PVC insulated and sheathed for mechanical protection.
IS 694:2010ISI / BISRoHSREACH
Printed on the cable
APAR SHAKTI ROUND MULTICORE · PVC insulated & sheathed
Applications
Where it's usedElectrical motorsAppliancesControl panelsElectrical boardsPumpsPower & control wiring
Not sure which size you need?
Open calculator →Use the APAR Wire-Size Calculator to size a circuit in seconds.
Documents
DownloadsFAQs
Good to knowHow many cores does Shakti Round Multicore come in?+
It is available in 2, 3 and 4 core from 0.5 to 95 sq mm; the dimensions table shows the 3-core range, with 2 and 4 core also available.
What is it used for?+
Low-voltage power and control connections — motors, appliances, control panels, electrical boards and pumps.
What insulation is used?+
Flame-retardant PVC insulation with a durable PVC outer sheath for flexibility and mechanical protection.
