Multicore Cables · XLPO Premium

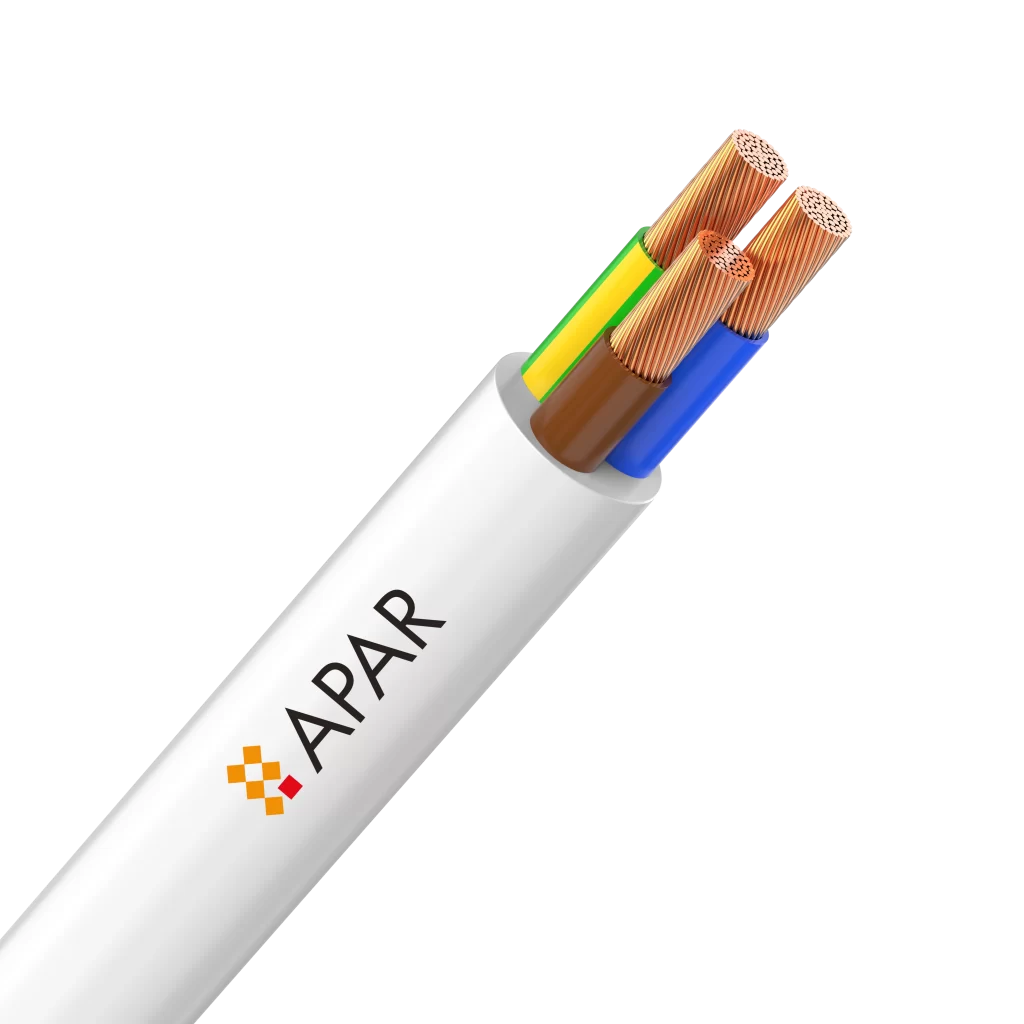

APAR Mahashakti Round Multicore
Premium XLPO-insulated, elastomer-sheathed round multicore cable.
InsulationXLPO
SheathSpecial elastomer
Cores2 / 3 / 4 core
Sizes0.75 – 16 sq mm
✓ ISI / BIS
✓ RoHS
✓ REACH
✓ XLPO
Description
OverviewMahashakti Round Multicore uses finely stranded electrolytic-grade copper conductors, XLPO insulation and a special elastomer sheath for excellent heat, abrasion and weather resistance. Available in 2, 3 and 4 core from 0.75 to 16 sq mm, it is also offered in XLPE and rubber insulation and in flexible aluminium conductor on request.
APAR Mahashakti Round Multicore is an in-house innovation built around a specially developed XLPO (cross-linked polyolefin) compound that gives superior protection against electrical shocks and short circuits. Flexible and rugged, it is ideal for a wide range of electrically operated machines and equipment — from residential air-conditioners and refrigerators to industrial motors.
Why this wire
Key benefits XLPO insulation Higher temperature rating than PVC.
Elastomer sheath Resists oil, water and abrasion.
Heavy duty Built for demanding installations.
Round profile Easy pulling through conduit.
Water resistant Long immersion life.
Flexible Stays workable in cold conditions.
Characteristics
At a glance| Application | Power connections for AC units, refrigerators, motors, pumps, machinery and control panels. |
|---|---|
| Characteristics | XLPO insulation with special elastomer sheath; high dielectric strength, heat- and short-circuit resistant, flexible and rugged. |
| Cores & colour | 2, 3 and 4 core; black outer sheath. |
| Product range | 0.75 – 16 sq mm; also available in XLPE / rubber insulation and aluminium conductor. |
| Packing | 100 m coil, 500 m and 1000 m drums. |
Construction
Cutaway
- 1Class 5 flexible copper conductorFinely stranded electrolytic-grade copper for flexibility
- 2XLPO insulationCross-linked polyolefin — high dielectric strength, heat- and short-circuit resistant
- 3Special elastomer sheathTough, abrasion- and weather-resistant outer sheath
Dimensions & ratings
Technical dataConductor & current rating
| Size (sq mm) | Construction (No./mm) | Insulation (mm) | Resistance (Ω/km) | Current (A) |
|---|---|---|---|---|
| 0.75 | 24/0.20 | 0.6 | 26 | 10 |
| 1.0 | 32/0.20 | 0.6 | 19.5 | 17 |
| 1.5 | 30/0.25 | 0.6 | 13.3 | 21 |
| 2.5 | 50/0.25 | 0.7 | 7.98 | 28 |
| 4.0 | 56/0.30 | 0.8 | 4.95 | 38 |
| 6.0 | 84/0.30 | 0.8 | 3.3 | 43 |
| 10 | 80/0.4 | 1.0 | 1.91 | 55 |
| 16 | 126/0.4 | 1.0 | 1.21 | 74 |
Standards & approvals
ComplianceBuilt with cross-linked polyolefin (XLPO) insulation and a heavy-duty elastomer sheath, and supplied ISI-marked and BIS-certified.
XLPO insulation carries a higher continuous temperature rating than PVC and resists water, oil and abrasion better, which is why this range is specified for heavy-duty and submersible installations. PVC-specific standards such as IS 694:2010 do not describe this construction.
ISI / BISXLPORoHSREACH
Printed on the cable
APAR MAHASHAKTI ROUND MULTICORE · XLPO · Elastomer sheath
Applications
Where it's usedAir-conditioners & refrigeratorsSubmersible & industrial motorsPumps & agricultural equipmentControl panels & machineryAppliancesPower distribution
Not sure which size you need?
Open calculator →Use the APAR Wire-Size Calculator to size a circuit in seconds.
Documents
DownloadsFAQs
Good to knowWhat is XLPO insulation?+
XLPO is cross-linked polyolefin — a high-performance insulation with better heat resistance, dielectric strength and short-circuit resistance than ordinary PVC, giving superior protection against shocks and short circuits.
Where is Mahashakti Round Multicore used?+
It powers air-conditioners, refrigerators, submersible and industrial motors, pumps, agricultural equipment, control panels and machinery.
Which core options are available?+
2, 3 and 4 core from 0.75 to 16 sq mm, with XLPE / rubber insulation and aluminium conductor options on request.
How is it supplied?+
In 100 m coils and 500 m or 1000 m drums, with a black outer sheath.
