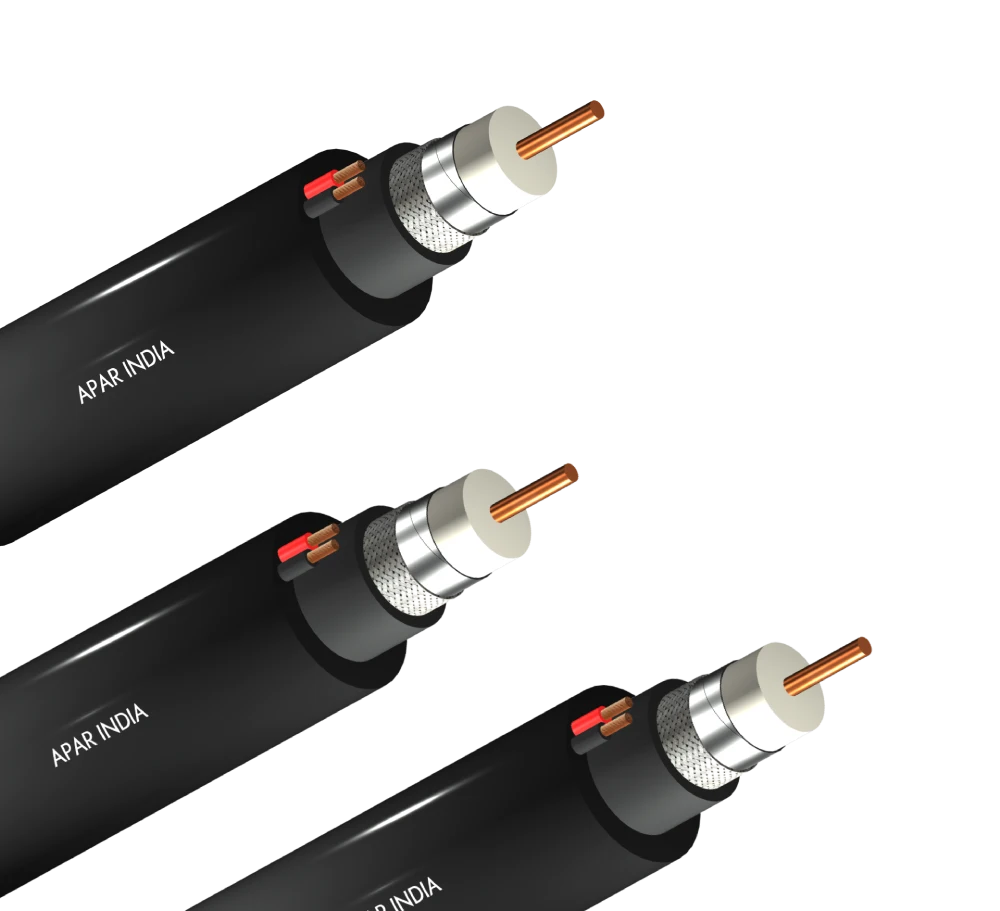

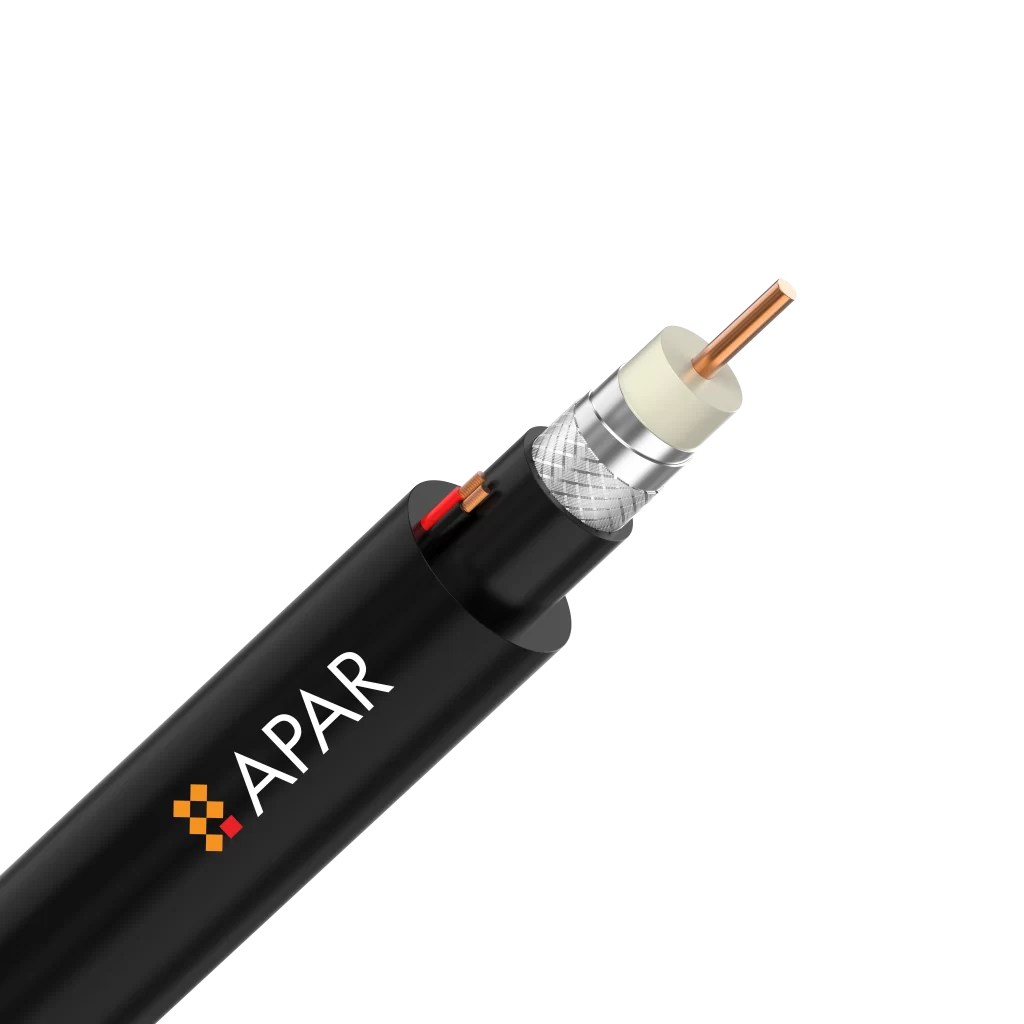

APAR Tarang Shakti CCTV Cables
Combined video + power CCTV cable for a clear, distortion-free picture.
TypeCCTV (video + power)
Configurations3+1 / 4+1 / 6+1
OptionsUnarmoured & armoured
Signal75 ohm Coaxial video core
✓ Video + power
✓ 75 ohm coax
✓ Armoured option
✓ RoHS
Description
OverviewTarang Shakti CCTV cable carries the video and the camera power in one sheath, so a run out to a camera is one cable rather than two. The video core is a 75 ohm coaxial with a solid copper conductor and foil plus braid shielding; the power cores are tinned flexible copper, colour coded. Available as 3+1, 4+1 and 6+1, armoured or unarmoured.
Shielding is the whole job on a CCTV run. A camera cable often shares a tray or a conduit route with mains wiring, and without proper foil and braid the picture picks up bars and rolling interference. The sheath is flame retardant to IEC 60332-1. The armoured version is the one to use outdoors, along a perimeter wall, or anywhere the cable is exposed to handling.
Why this wire
Key benefits Video plus power One pull serves the camera.
75 Ω coax Correct impedance for clean video.
Shielded Rejects electrical interference.
Solid copper core Signal quality along the full run.
Armoured option For outdoor and buried runs.
RoHS Free of restricted substances.
Characteristics
At a glance| Type | CCTV combined cable, RG-59 type 75 ohm coaxial video core plus power cores in a single sheath. |
|---|---|
| Configurations | 3+1, 4+1 and 6+1 (coaxial video + 3 / 4 / 6 power cores). |
| Video core | Solid copper conductor, PE dielectric, aluminium mylar foil + copper braid shielding. |
| Power cores | Annealed tinned flexible copper, PVC insulated, colour coded. |
| Sheath | Flame retardant PVC (IEC 60332-1), white. Armoured versions for outdoor and exposed runs. |
| Compliance | RoHS compliant. |

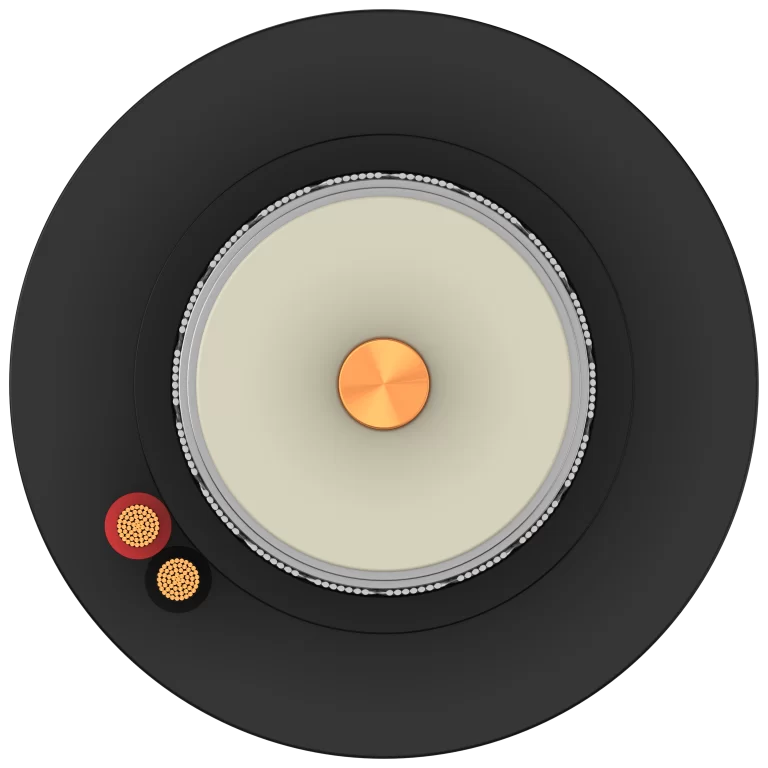

Construction
Cutaway
- 1Copper video conductorSolid annealed copper, nominal 0.60 mm (RG-59 type)
- 2PE dielectricSolid polyethylene insulation for stable 75 ohm impedance
- 3Aluminium mylar foil100% coverage shield against interference
- 4Copper braid48 x 0.11 mm wires for low-noise video over long runs
- 5Coax jacketPVC Type ST1, black, 0.45 mm
- 6Power coresTinned flexible copper 16/0.1 mm, PVC insulated, Red / Yellow / Grey
- 7FR PVC outer sheathFlame retardant to IEC 60332-1, white, nominal 5.8 mm
Dimensions & ratings
Technical dataConfigurations
| Cable type | Configuration |
|---|---|
| CCTV 3+1 | Coaxial video + 3 power cores |
| CCTV 4+1 | Coaxial video + 4 power cores |
| CCTV 6+1 | Coaxial video + 6 power cores |
| CCTV 3+1 Armoured | Armoured video + 3 power cores |
| CCTV 4+1 Armoured | Armoured video + 4 power cores |
| CCTV 6+1 Armoured | Armoured video + 6 power cores |
Standards & approvals
ComplianceBuilt as 75 Ω coaxial cable to the RG-59 construction used for analogue CCTV video, with a solid copper centre conductor and a braided shield for interference rejection. The composite versions carry the video coax and the camera power pair in a single sheath, so one pull serves the whole camera.
Tested for characteristic impedance, shield coverage and attenuation. An armoured variant is available for direct burial and outdoor runs.
IS 694:2010 and the ISI mark do not apply to coaxial video cables — that standard covers PVC-insulated power and lighting cables.
75 Ω coaxialRG-59RoHS
Applications
Where it's usedCCTV & surveillance camerasHome & office securityRetail & warehousesIndustrial monitoringCampus & perimeter securityAnalog & HD-CVI/TVI systems
Not sure which size you need?
Open calculator →Use the APAR Wire-Size Calculator to size a circuit in seconds.
Documents
DownloadsFAQs
Good to knowWhat does 3+1 / 4+1 / 6+1 mean?+
It describes the cores: a coaxial video conductor plus 3, 4 or 6 power cores in one sheath, so a single cable carries both the camera video signal and its power.
When should I use the armoured version?+
Choose armoured cable for outdoor, buried or exposed runs where extra mechanical protection against damage and rodents is needed.
What cameras is it suitable for?+
Analog and HD (CVI/TVI/AHD) CCTV cameras in homes, offices, retail, warehouses and industrial sites.
