123
  1. 1
    Flexible copper conductorFinely drawn annealed bare copper strands of electrolytic grade
  2. 2
    FR-LSH PVC insulationTwin-Screw formulated; flame-retardant, low smoke and low halogen, high dielectric strength
  3. 3
    Printed identification & ISI markingGrade, size, 1100 V, IS 694 and BIS licence number
House Wires & Cables · FR-LSH

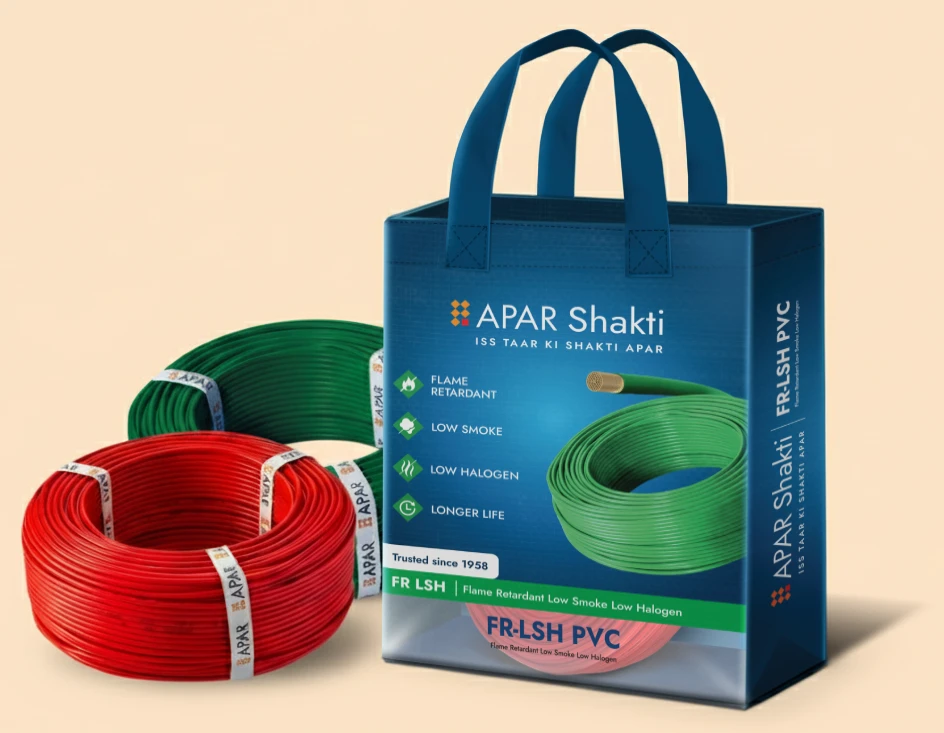

APAR Shakti FR LSH

FR-LSH copper house wire with low-smoke, low-halogen insulation.
InsulationFR-LSH PVC
Voltage grade1100 V
Conductor100% conductivity copper
Sizes0.5 – 16 sq mm
Share
✓ IS 694:2010
✓ ISI / BIS
✓ RoHS
✓ REACH
✓ Low-halogen

FRLS wire for home wiring

Overview

APAR Shakti FR-LSH wire is an FRLS wire for home wiring that combines flexible, annealed copper conductors with flame-retardant, low-smoke, low-halogen PVC insulation. Choose this grade for residential or commercial wiring when your requirement calls for low-smoke and low-halogen properties alongside flame retardance. Its single-core, 1100 V range covers 0.5 to 16 sq mm, with size-specific dimensions, resistance and installation ratings published below.

This FR-LSH copper house wire gives homeowners, electricians and project buyers a defined insulation grade to specify. FR identifies flame retardance; LSH identifies low-smoke, low-halogen performance. Shakti is a low-smoke low-halogen wire with PVC insulation; Fire Protekt is the separate HFFR option when halogen-free insulation is required. When selecting FRLS wire for residential buildings, first confirm the insulation grade in the electrical design, then choose the conductor size for the actual circuit. Shakti’s published data includes separate in-conduit and clipped current-rating columns, so match the available rating to the installation instead of using one figure for every route. APAR Shakti FR-LSH wire is listed for residential and commercial wiring, motors, appliances and control panels. Review the construction and rating tables, then send your chosen sizes, lengths, colours and project location for a quote. Published documents are available below, and the relevant technical report can be supplied separately on request.

Why this wire

Key benefits
Flame-retardant PVC insulation FR-LSH combines flame retardance with low-smoke and low-halogen insulation properties.
Low-smoke performance The published fire-performance table provides the smoke-density figure for this product.
Low-halogen grade Shakti FR-LSH is a low-halogen PVC wire. Compare Fire Protekt when your requirement specifies halogen-free HFFR insulation.
Flexible copper conductors Finely stranded, annealed copper provides flexibility during installation.
Size-specific installation data Compare the dimensions, resistance and available in-conduit or clipped ratings for the selected size.
Choice of colours Multiple colour options support conductor identification during installation.

Characteristics

At a glance
ApplicationLow-voltage residential and commercial wiring, motors, appliances, control panels, transformers and battery circuits.
CharacteristicsFR-LSH PVC insulation; flame-retardant and self-extinguishing; low smoke and low halogen; high thermal stability.
Applicable standardIS 694:2010.
Product rangeSingle-core, 1100 V grade, 0.5 – 16 sq mm.
Advantages100% conductivity copper; low smoke and low halogen; energy-saving; available in multiple colours.

Construction

Cutaway
123
  1. 1
    Flexible copper conductorFinely drawn annealed bare copper strands of electrolytic grade
  2. 2
    FR-LSH PVC insulationTwin-Screw formulated; flame-retardant, low smoke and low halogen, high dielectric strength
  3. 3
    Printed identification & ISI markingGrade, size, 1100 V, IS 694 and BIS licence number

Dimensions & ratings

Technical data
Conductor & current rating
Size (sq mm)Construction (No./mm)Insulation (mm)O.D. (mm)Resistance (Ω/km)In conduit (A)Clipped (A)
0.516/0.20.62.103934
0.7524/0.20.62.202667
132/0.20.62.4019.51112
1.530/0.250.72.8513.31316
2.550/0.250.83.507.981822
456/0.30.84.004.952429
684/0.30.84.503.33137
1080/0.41.06.31.91—46
16126/0.41.07.251.21—62
Fire performance
Temperature indexOxygen indexSmoke densityAcid gas
≥ 250°C≥ 29%≤ 60%≤ 20%

Standards & approvals

Compliance

Manufactured and tested to IS 694:2010, the Indian Standard for PVC-insulated cables for working voltages up to and including 1100 V. Every drum is ISI-marked and BIS-certified.

Flame-retardant, low-smoke, low-halogen grade as defined in IS 694:2010.

The BIS licence number is printed along the wire, so an electrician or buyer can verify a genuine product at the point of sale.

IS 694:2010ISI / BISRoHSREACH
Printed on the cable
APAR SHAKTI FR LSH · 1100V · IS 694

Applications

Where it's used
Residential and commercial wiringElectrical motorsAppliancesControl panelsDC power transformersDistribution boards and battery circuits
Not sure which size you need?

Use the APAR Wire-Size Calculator to size a circuit in seconds.

Open calculator →

FAQs

Good to know

Shakti combines flexible copper conductors with flame-retardant, low-smoke and low-halogen PVC insulation. It is the APAR Shakti option for residential and commercial wiring that calls for this grade. Use its published construction and installation ratings to select the size for each circuit.

FRLS commonly means flame-retardant, low-smoke wire. APAR’s FR-LSH product name also identifies its low-halogen property. When ordering, specify APAR Shakti FR-LSH and the conductor size, rather than relying on an abbreviated grade name alone.

Shakti FR-LSH is a low-halogen PVC wire. Halogen-free insulation is a different requirement: Fire Protekt is APAR’s e-beam cross-linked HFFR option. Check the required grade and the individual product data before choosing between them.

The published single-core, 1100 V range extends from 0.5 to 16 sq mm. Have your electrician or electrical designer assess the circuit load, route length and installation conditions. Check the appropriate in-conduit or clipped rating where provided in the product table; do not apply a clipped rating to a conduit installation.

It is manufactured and tested to IS 694:2010 for single-core unsheathed cables.

Shakti FR-LSH uses flame-retardant, low-smoke, low-halogen PVC insulation. Anushakti HR-FR-LSH is the separate heat-resistant, e-beam cross-linked grade. Match the specified insulation properties and published installation ratings to your project rather than substituting one product on the basis of a similar name.

State APAR Shakti FR-LSH, the conductor sizes, required lengths, colours and project location. Use the existing Documents section for published product information. APAR can supply the relevant technical report separately on request and confirm prices and availability for your requirement.
