House Wires & Cables · FR-PVC

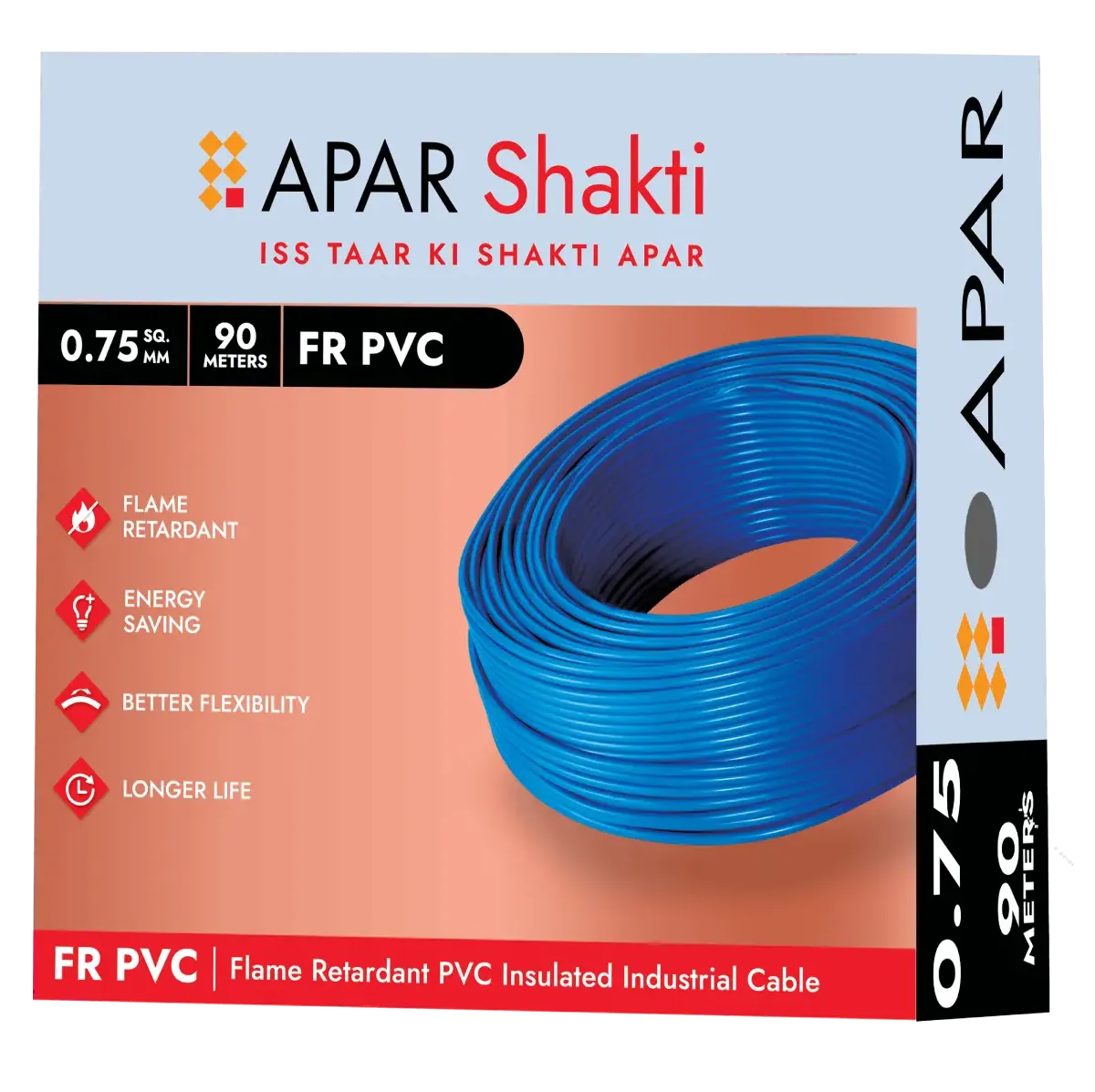

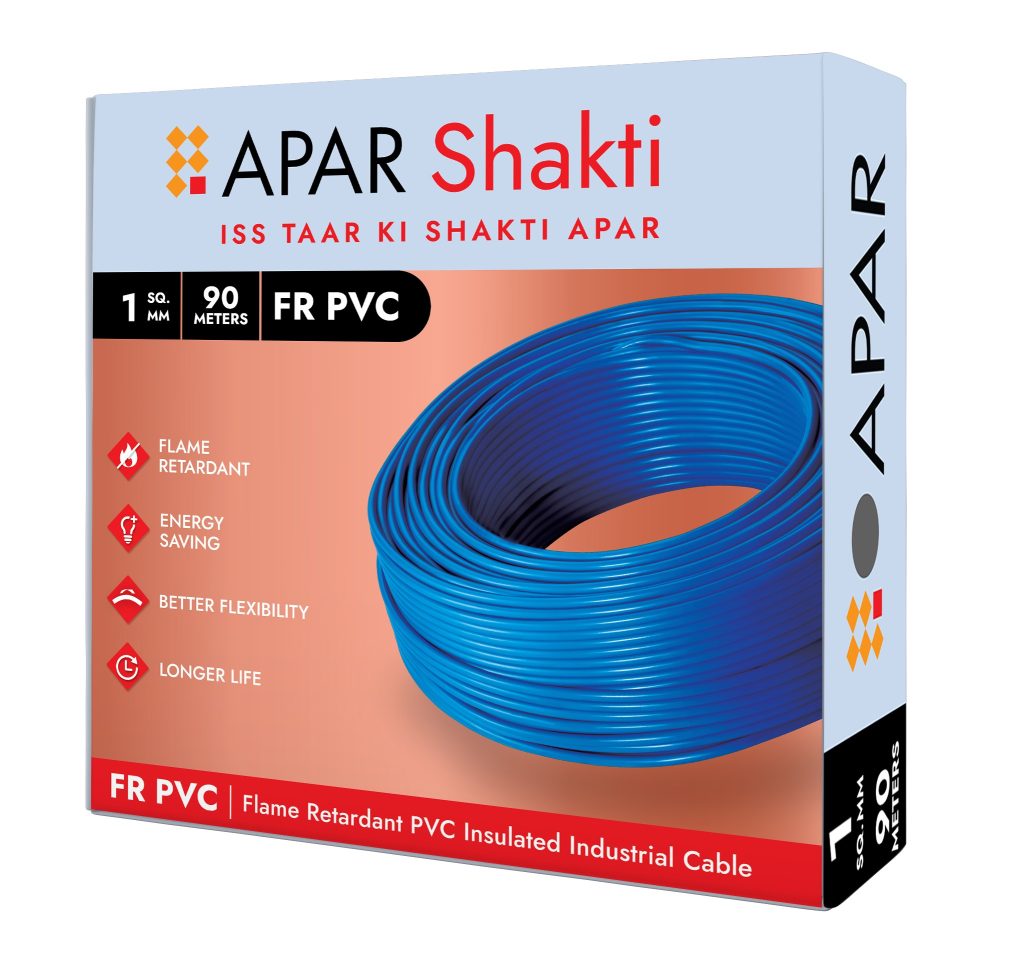

APAR Shakti FR PVC
Flame-retardant PVC single-core house wire — self-extinguishing, durable.
InsulationFR-PVC
Voltage grade1100 V
Conductor100% conductivity copper
Sizes0.75 – 16 sq mm
✓ IS 694:2010
✓ ISI / BIS
✓ RoHS
✓ REACH
Description
OverviewAPAR Shakti FR PVC conductors are drawn from electrolytic-grade annealed bare copper for 100% conductivity and low power loss, and insulated using Twin-Screw technology with a specially formulated FR PVC compound. The result is flame-retardant, melt-resistant, self-extinguishing insulation with high dielectric strength, a service life of over 25 years and excellent flexibility for easy installation. It complies with IS 694 for PVC-insulated unsheathed cables.
APAR Shakti FR PVC single-core flexible wires use an in-house Flame-Retardant PVC compound engineered for safe, versatile low-voltage wiring. A high oxygen index (>29%) and temperature index (>250°C) make the insulation self-extinguishing and restrict flame spread, while high dielectric strength and 100% conductivity copper deliver reliable, energy-efficient performance.
Why this wire
Key benefits Flame retardant Restricts flame spread along the run.
ISI marked Made to IS 694:2010.
Flexible Easier pulling through conduit.
Stable insulation Consistent thickness along the length.
Long life Built for decades of service.
Trusted supply Backed by APAR's cable expertise.
Characteristics
At a glance| Application | Versatile low-voltage wiring for homes and commercial buildings, motors, appliances, control panels and battery circuits. |
|---|---|
| Characteristics | FR-PVC insulation; flame-retardant and self-extinguishing; melt-resistant with high dielectric strength. |
| Applicable standard | IS 694. |
| Product range | Single-core, 1100 V grade, 0.75 – 16 sq mm. |
| Advantages | 100% conductivity copper; energy-saving with low power loss; ~25-year service life; better flexibility. |
Construction
Cutaway123
- 1Flexible copper conductorFinely drawn annealed bare copper strands of electrolytic grade
- 2FR-PVC insulationTwin-Screw formulated; flame-retardant, melt-resistant, high dielectric strength
- 3Printed identification & ISI markingGrade, size, 1100 V, IS 694 and BIS licence number
Dimensions & ratings
Technical dataConductor & current rating
| Size (sq mm) | Construction (No./mm) | Insulation (mm) | O.D. (mm) | Resistance (Ω/km) | In conduit (A) | Clipped (A) |
|---|---|---|---|---|---|---|
| 0.75 | 24/0.2 | 0.6 | 2.20 | 26 | 6 | 7 |
| 1 | 32/0.2 | 0.6 | 2.40 | 19.5 | 11 | 12 |
| 1.5 | 30/0.25 | 0.7 | 2.85 | 13.3 | 13 | 16 |
| 2.5 | 50/0.25 | 0.8 | 3.50 | 7.98 | 18 | 22 |
| 4 | 56/0.3 | 0.8 | 4.00 | 4.95 | 24 | 29 |
| 6 | 84/0.3 | 0.8 | 4.50 | 3.3 | 31 | 37 |
| 10 | 80/0.4 | 1.0 | 6.1 | 1.91 | — | 46 |
| 16 | 126/0.4 | 1.0 | 7.3 | 1.21 | — | 62 |
Fire performance
| Temperature index | Oxygen index | Smoke density | Acid gas |
|---|---|---|---|
| ≥ 250°C | ≥ 29% | ≤ 60% | ≤ 20% |
Standards & approvals
ComplianceManufactured and tested to IS 694:2010, the Indian Standard for PVC-insulated cables for working voltages up to and including 1100 V. Every drum is ISI-marked and BIS-certified.
Flame-retardant grade as defined in IS 694:2010.
The BIS licence number is printed along the wire, so an electrician or buyer can verify a genuine product at the point of sale.
IS 694:2010ISI / BISRoHSREACH
Printed on the cable
APAR SHAKTI FR PVC · 1100V · IS 694
Applications
Where it's usedResidential & commercial wiringElectrical motors & appliancesControl panelsDC power transformersElectrical boardsBattery cable connections
Not sure which size you need?
Open calculator →Use the APAR Wire-Size Calculator to size a circuit in seconds.
Documents
DownloadsFAQs
Good to knowWhat does FR PVC mean?+
FR PVC is Flame-Retardant PVC. Its high oxygen and temperature index makes the insulation self-extinguishing, so the wire does not sustain a flame once the ignition source is removed.
What is it used for?+
Versatile low-voltage wiring — electrical appliances, motors, control panels, DC power transformers, electrical boards and battery cable systems in homes and commercial spaces.
What is the service life?+
Over 25 years under normal operating conditions, thanks to its durable FR PVC insulation and high-purity copper conductor.
Which standard does it meet?+
It complies with IS 694 for PVC-insulated unsheathed and sheathed cables.
