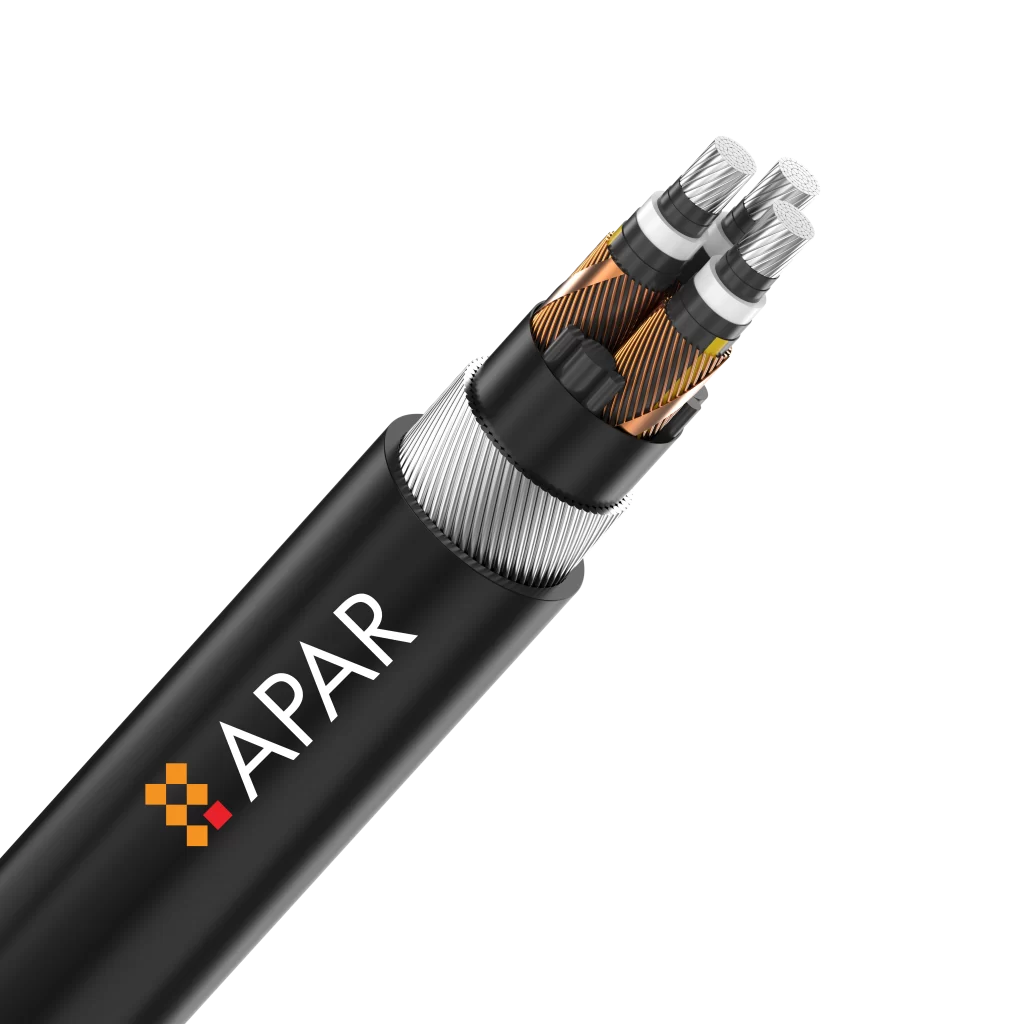

MV/HV XLPE insulated power cables up to 66 kV
APAR has been making medium voltage cables up to 33 kV since 1991.
Voltage range3.3/6.6 kV up to 38/66 kV
Single core150 – 1000 mm²
Three core3.3 – 33 kV, up to 630 mm²
ConductorCopper or aluminium, Class 2 compacted
✓ Up to 66 kV
✓ XLPE
✓ IS 7098-2
✓ Armoured or non-armoured
Description
OverviewThe older line is dry cure water cooled, and the newer ones are dry cure dry cooled. These precision-engineered cables are designed to match the highest Indian and international standards. Our cables are made from high-performance polymers, and are provided with with triple-layer cross heads and Sikora x-Ray systems. They are ideal for critical applications requiring PD values less than 2 PC. XLPE provides excellent electrical and mechanical properties, and a low dielectric factor. We also develop high-ampacity XLPE cables for maximum continuous operating temperatures of 105°C. Application MV Cables support a voltage range between 6 kV and 33 kV, making them ideal for use in infrastructure (including the distribution and transmission of power). Apart from transmission, these 66 kV cables are used for bulk power distribution. Characteristics Simultaneous triple extrusion of three layers:
Why this wire
Key benefits Triple extruded Semicon / XLPE / semicon cross-linked in one pass.
Low partial discharge PD values below 2 pC for critical applications.
Armoured or non-armoured Aluminium strip, wire or tape on single core; GI steel on multicore.
Sheath to suit PVC, PE, FR, FRLS or LSOH as required.
Moisture barrier Corrugated aluminium sheath or polyal tape available.
105°C option High-ampacity variant for high ambient temperatures.
Characteristics
At a glance| Application | MV Cables support a voltage range between 6 kV and 33 kV, making them ideal for use in infrastructure (including the distribution and transmission of power). Apart from transmission, these 66 kV cables are used for bulk power distribution. |
|---|---|
| Characteristics | Simultaneous triple extrusion of three layers: semicon/XLPE/semicon cross-linking under high temperatures and inert gas, rated from 3.3/6.6 kV up to u0/u = 38/66 kV The inner/outer sheaths of PVC/PE/FR/FRLS/LSOH are available as per customer requirements. The single core cables have an armouring of aluminium flat strip/round wire or tape. For multi core cable armouring, the GI Steel can be in flat strip, round wire or tape. The conductor is generally Class 2 stranded compacted. 8000 series Aluminium can also be provided. |
| Applicable standards | IS 7098 Part 2, BS 6622 & IEC 60502-2 specifications for voltage grades upto 66 KV |
| Product range | Single core cables: copper/aluminium, armoured/non armoured, PVC/PE/LSOH sheathing from 150mm² to 1000 mm² upto 66 kV (moisture barrier of aluminium corrugated sheath or polyal tape) |
| Advantages | Three core cables: 3.3 kV to 33 kV with copper/aluminium, armoured and non armoured, PVC/PE/LSOH sheathing up to 630 mm². The low discharge PD values of XLPE insulation ensures a long and trouble-free service life. |

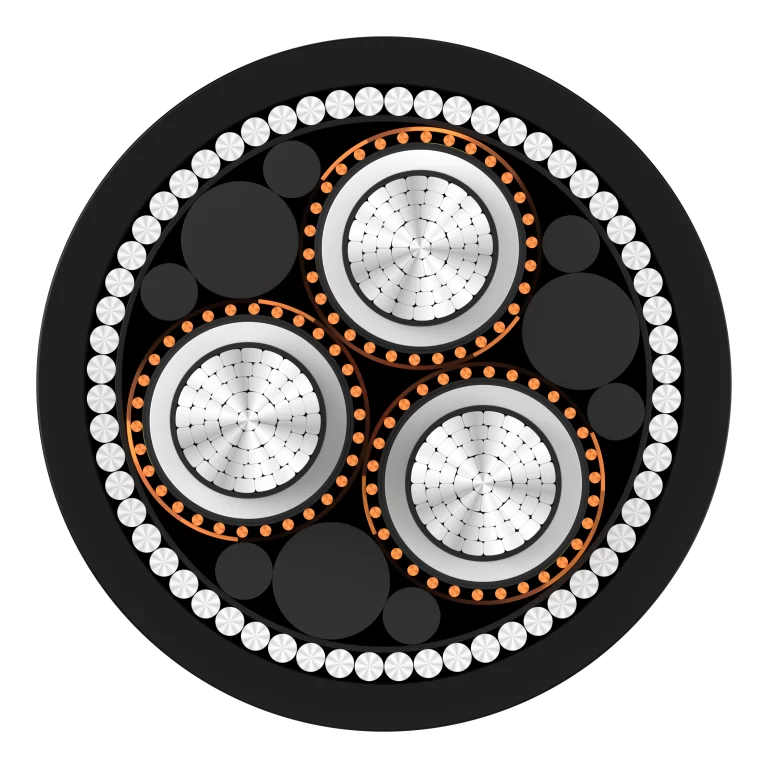

Construction
Cutaway123
- 1ConductorStranded, sized and specified for the application
- 2InsulationCompound selected for the product type and temperature rating
- 3Printed identificationGrade, size, voltage and applicable standard
Dimensions & ratings
Technical dataSingle core, 6.35/11 kV grade, armoured and unarmoured, aluminium or copper conductor. Tables for 3.3, 6.6, 22 and 33 kV and for three-core constructions are available on request.
| Size (mm²) | XLPE ins. (mm) | O.D. unarm. (mm) | DC res. Al (Ω/km) | DC res. Cu (Ω/km) | In ground 30°C Al (A) | In ground 30°C Cu (A) | In air 40°C Al (A) | In air 40°C Cu (A) | Short circuit 1s Al (kA) | Short circuit 1s Cu (kA) |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 3.6 | 19.5 | 1.20 | 0.727 | 99 | 127 | 116 | 150 | 2.36 | 3.56 |
| 35 | 3.6 | 21.0 | 0.868 | 0.524 | 118 | 151 | 140 | 181 | 3.30 | 5.00 |
| 50 | 3.6 | 22.0 | 0.641 | 0.387 | 138 | 178 | 167 | 216 | 4.72 | 7.15 |
| 70 | 3.6 | 23.5 | 0.443 | 0.268 | 168 | 216 | 209 | 269 | 6.60 | 10.01 |
| 95 | 3.6 | 25.0 | 0.320 | 0.193 | 200 | 257 | 254 | 326 | 8.96 | 13.58 |
| 120 | 3.6 | 26.5 | 0.253 | 0.153 | 227 | 290 | 294 | 376 | 11.32 | 17.16 |
| 150 | 3.6 | 28.0 | 0.206 | 0.124 | 252 | 323 | 331 | 424 | 14.16 | 21.45 |
| 185 | 3.6 | 30.0 | 0.164 | 0.0991 | 284 | 360 | 383 | 487 | 17.46 | 26.45 |
| 240 | 3.6 | 32.5 | 0.125 | 0.0754 | 326 | 411 | 450 | 568 | 22.65 | 34.32 |
| 300 | 3.6 | 34.5 | 0.100 | 0.0601 | 365 | 456 | 512 | 643 | 28.32 | 42.9 |
| 400 | 3.6 | 37.0 | 0.0778 | 0.0470 | 412 | 508 | 594 | 735 | 37.76 | 57.25 |
| 500 | 3.6 | 41.5 | 0.0605 | 0.0366 | 461 | 559 | 680 | 828 | 47.20 | 71.5 |
| 630 | 3.6 | 45.0 | 0.0469 | 0.0283 | 514 | 611 | 778 | 930 | 59.45 | 90.1 |
| 800 | 3.6 | 49.5 | 0.0367 | 0.0221 | 553 | 639 | 863 | 1003 | 75.50 | 114.4 |
| 1000 | 3.6 | 54.5 | 0.0291 | 0.0176 | 595 | 672 | 954 | 1083 | 94.40 | 143.0 |
Standards & approvals
ComplianceManufactured to IS 7098 Part 2, BS 6622, IEC 60502-2, and tested in APAR's NABL-accredited laboratory. Test certificates and detailed technical particulars are issued on request — please confirm the standard your project is tendered against.
IS 7098 Part 2BS 6622IEC 60502-2
Applications
Where it's usedBulk power distribution
Not sure which size you need?
Open calculator →Use the APAR Wire-Size Calculator to size a circuit in seconds.
Documents
DownloadsFAQs
Good to knowWhat are the main applications?+
Typical applications include bulk power distribution. Contact our technical team to confirm suitability for your specification.
Where are these cables typically used?+
MV Cables support a voltage range between 6 kV and 33 kV, making them ideal for use in infrastructure (including the distribution and transmission of power).
How do I get pricing or more details?+
Use the enquiry form on this page or the Request a Quote option, and APAR's team will respond with availability and details for your requirement.
