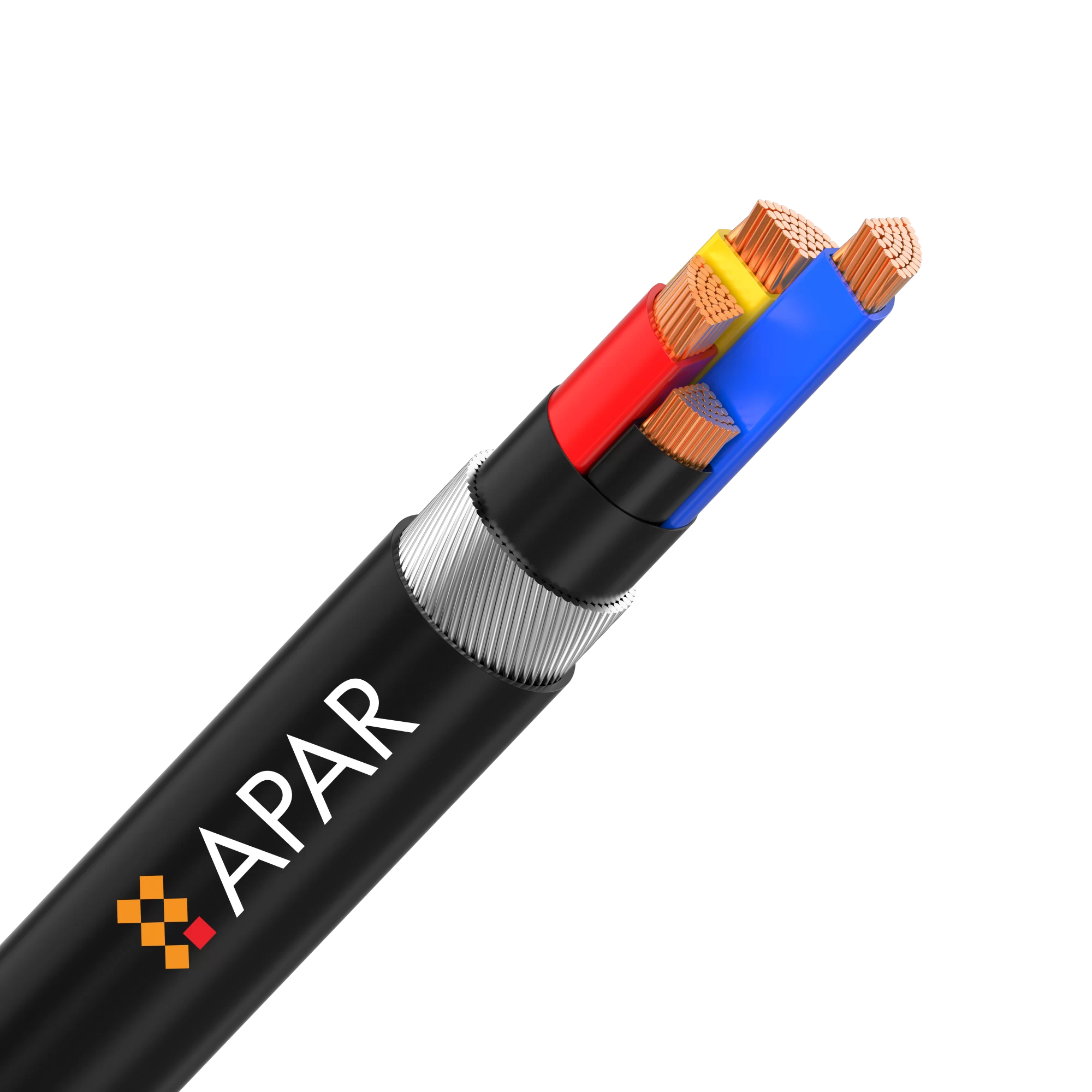

High ampacity XLPE cables (105°C)
High-ampacity XLPE cable rated for 105C continuous operation.
Insulation
Voltage grade
Operating temp
Sizes
Description
OverviewApplication Ideal for use in high ambient temperature zones like northern India, where summer temperatures go up to 50°C. They are also used in Middle Eastern countries where summer temperatures go as high as 55°C. Characteristics XLPE insulation is suitable for maximum continuous operating temperatures of 105°C instead of the conventional XLPE, with maximum operating temperatures of 90°C. Thus these cables can carry up to 15% more current. Applicable standards All applicable standards Product range Full range of LV and MV cables Advantages Due to high ambient temperatures, the cables’ current-carrying capacity is de-rated. By using these cables one can avoid using higher cross sections of conductors, thereby reducing cost.
A higher continuous conductor temperature allows more current through the same cross-section, increasing circuit capacity without increasing cable size - useful where ducts and routes are already full.
Why this wire
Key benefits Engineered construction Precision-manufactured for consistent, reliable performance.
Application-matched designs Armoured and unarmoured variants to suit the installation.
Quality-tested Produced in ISO-accredited plants with in-house testing.
Project support Cable selection guidance from APAR's technical team.
Characteristics
At a glance| Application | Ideal for use in high ambient temperature zones like northern India, where summer temperatures go up to 50°C. They are also used in Middle Eastern countries where summer temperatures go as high as 55°C. |
|---|---|
| Characteristics | XLPE insulation is suitable for maximum continuous operating temperatures of 105°C instead of the conventional XLPE, with maximum operating temperatures of 90°C. Thus these cables can carry up to 15% more current. |
| Applicable standards | All applicable standards |
| Product range | Full range of LV and MV cables |
| Advantages | Due to high ambient temperatures, the cables’ current-carrying capacity is de-rated. By using these cables one can avoid using higher cross sections of conductors, thereby reducing cost. |
| 105°C vs conventional 90°C XLPE | Standard XLPE is rated for 90°C continuous conductor temperature; this compound is rated for 105°C continuous. |
| What that allows | More current, or the same current in hotter surroundings — the exact gain depends on installation and derating, not a fixed figure. |
| To size it, send us | Ambient temperature, installation method, grouping, conductor material and size, and the required current. |
| Still needs derating | A 105°C rating does not remove the need for standard derating for ambient temperature and grouping. |

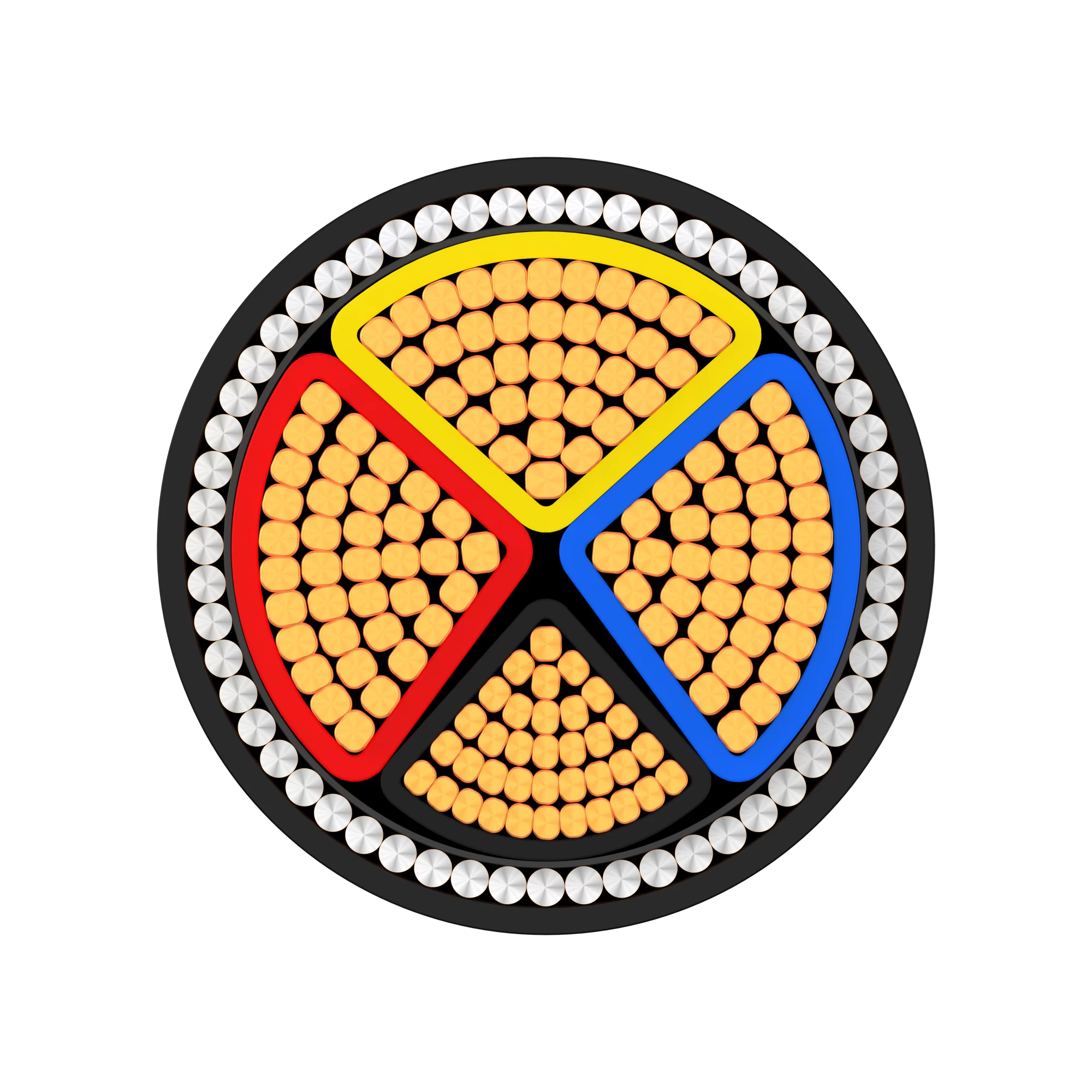

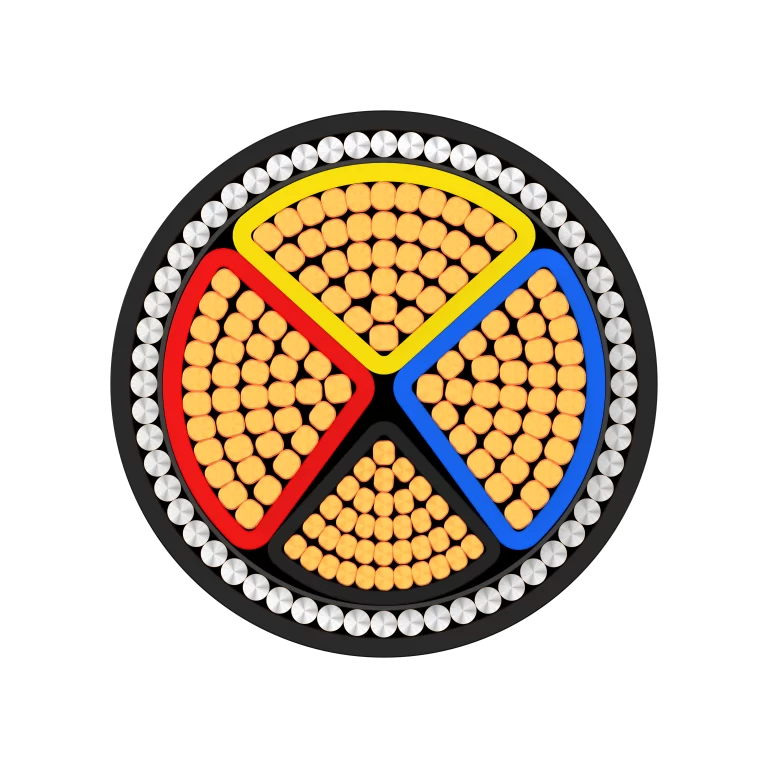

Construction
Cutaway
- 1ConductorStranded, sized and specified for the application
- 2InsulationCompound selected for the product type and temperature rating
- 3Printed identificationGrade, size, voltage and applicable standard
Standards & approvals
ComplianceManufactured to the applicable Indian and international standards for this cable type, and tested in APAR's NABL-accredited laboratory. Please contact us for the specific standards, test certificates and detailed specifications for your project.
Applications
Where it's usedPower distributionIndustrial plantsInfrastructure projectsUtilities
