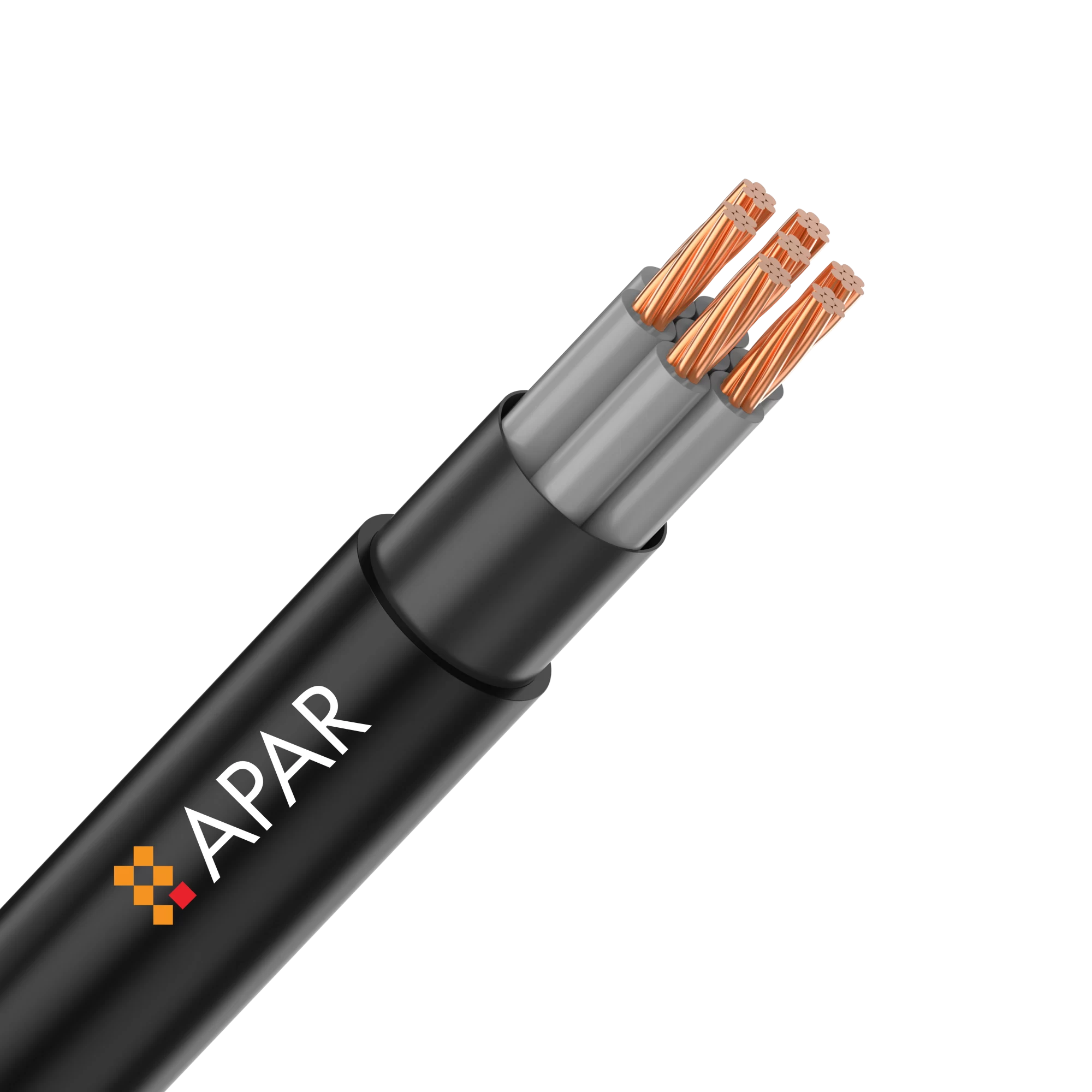

LV XLPE/PVC insulated control cables up to 61 core
APAR manufactures low-voltage, XLPE-insulated, heavy-duty cables.
Voltage600/1000 V to 1100 V
Cores2 up to 61
Conductor size1.5 and 2.5 mm²
ArmourSteel wire armour (SWA) or unarmoured
✓ 600/1000 V
✓ 2 – 61 core
✓ SWA option
✓ IEC 60502-1
Description
OverviewAPAR’s XLPE-insulated, PVC-sheathed, multi-core (with and without steel wire armour (SWA)) auxiliary fixed wiring cables are used in power networks, underground, outdoor and indoor applications. They are also used in cable ducting for residential and commercial infrastructure. They serve as the connecting medium in power and control panels, cabinets and switchgears. They are also used for stationary and static appliances, motors, and for other single phase connections. The cables provide protection against electrical interference and resistance to caustic substances and oils. Application Control cables are primarily used with control, indication and alarm equipment for switchgears and similar power apparatuses in power stations and substations. Characteristics Our multi core cables take almost 40% less space than other similar cables. The cables are resistant to oils and chemicals. The 4
Why this wire
Key benefits Up to 61 cores From 2 core to 61 core in one cable.
40% less space Takes almost 40% less space than comparable cables.
4 kV test voltage Verifies high insulation performance.
Armoured or unarmoured With or without steel wire armour (SWA).
Oil and chemical resistant Suited to dry, damp and wet interiors.
Sheath to suit PVC, FRLS or LSOH.
Characteristics
At a glance| Application | Control cables are primarily used with control, indication and alarm equipment for switchgears and similar power apparatuses in power stations and substations. |
|---|---|
| Characteristics | Our multi core cables take almost 40% less space than other similar cables. The cables are resistant to oils and chemicals. The 4 kV test voltage ensures high-insulation performance. |
| Applicable standards | I.S. 7098 PART 1, IEC 60502-1 and BS 5467 specifications for 600/1000 V to 1100 V. Also manufactured as per AS/NZS 4026 & AS/NZS : 5000.1 |
| Product range | 1.5 and 2.5 mm core armoured, unarmoured, PVC sheathed Cables 600/1000 V from 2 core, up to 61 core with sheathing of PVC/ FRLS/ LSOH. |
| Advantages | Multi core cables are reasonably priced, easy to work with, durable and versatile. They can be used in dry, damp and even wet interiors under medium mechanical load conditions. |
Construction

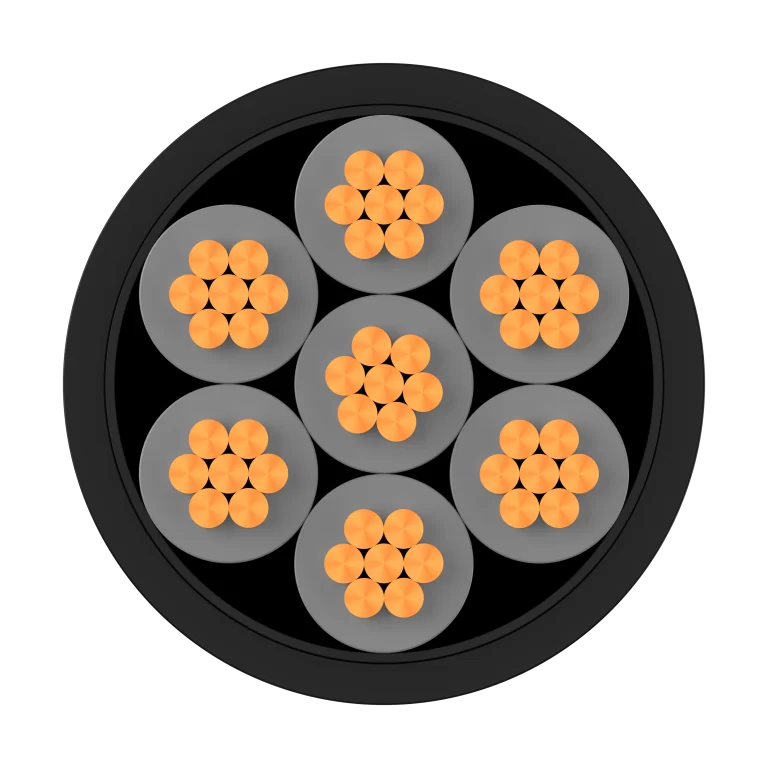

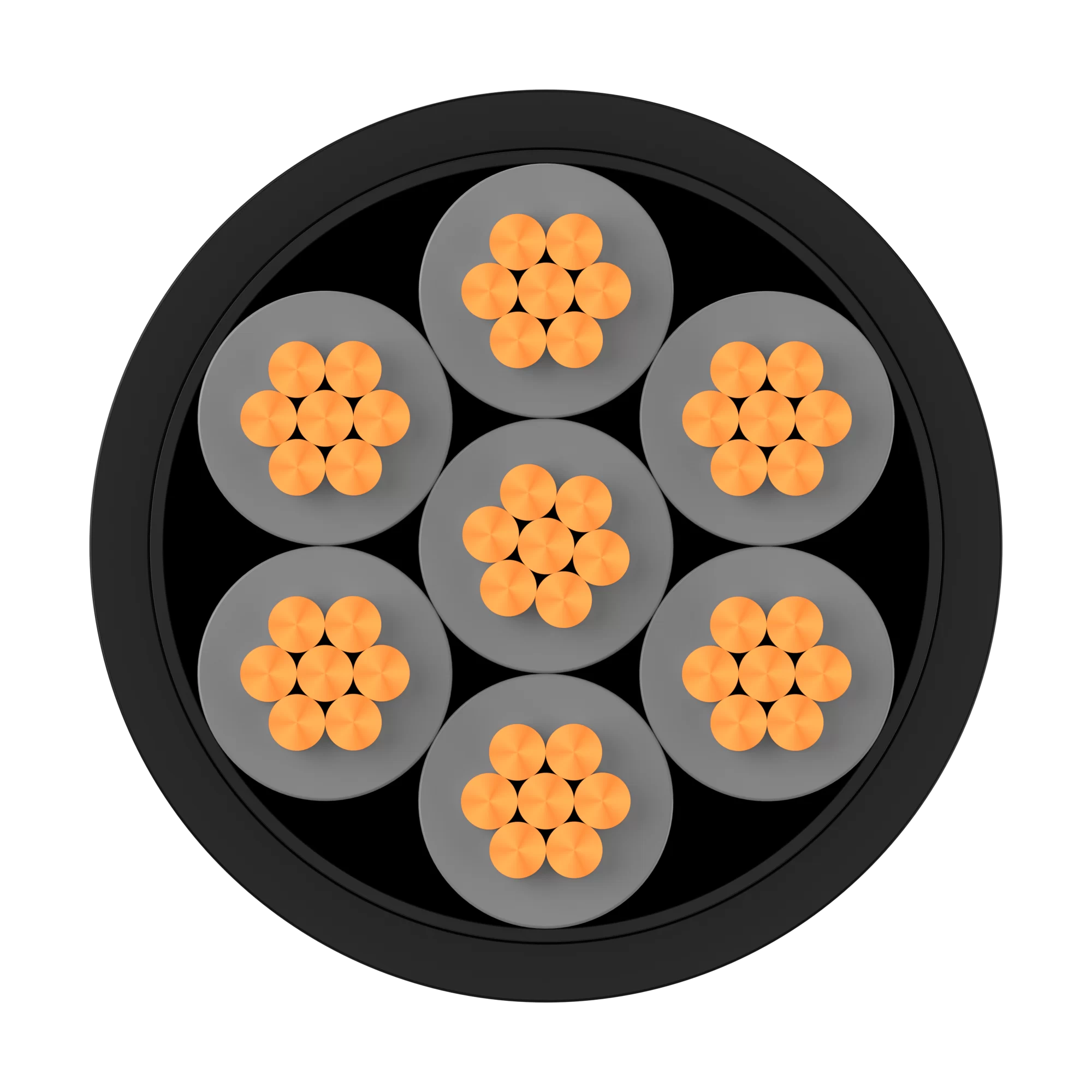

Cutaway
- 1ConductorStranded, sized and specified for the application
- 2InsulationCompound selected for the product type and temperature rating
- 3Printed identificationGrade, size, voltage and applicable standard
Dimensions & ratings
Technical dataCopper conductor of 1.5 sq mm, XLPE insulated, armoured and unarmoured, to IS 7098 Part 1 (1988). Aluminium is not offered in this construction.
| Cores × 1.5 mm² | XLPE ins. (mm) | O.D. unarm. (mm) | DC res. Cu (Ω/km) | In ground 30°C Cu (A) | In air 40°C Cu (A) | Short circuit 1s Cu (kA) |
|---|---|---|---|---|---|---|
| 2 | 0.7 | 11.5 | 12.1 | 33 | 29 | 0.21 |
| 3 | 0.7 | 12.0 | 12.1 | 25 | 22 | 0.21 |
| 4 | 0.7 | 13.0 | 12.1 | 25 | 22 | 0.21 |
| 5 | 0.7 | 13.5 | 12.1 | 24 | 21 | 0.21 |
| 6 | 0.7 | 14.5 | 12.1 | 22 | 19 | 0.21 |
| 7 | 0.7 | 14.5 | 12.1 | 21 | 18 | 0.21 |
| 10 | 0.7 | 18.0 | 12.1 | 18 | 16 | 0.21 |
| 12 | 0.7 | 18.5 | 12.1 | 17 | 15 | 0.21 |
| 19 | 0.7 | 21.0 | 12.1 | 15 | 13 | 0.21 |
| 27 | 0.7 | 25.0 | 12.1 | 13 | 11 | 0.21 |
| 37 | 0.7 | 28.0 | 12.1 | 11 | 10 | 0.21 |
| 44 | 0.7 | 31.0 | 12.1 | 11 | 9 | 0.21 |
| 52 | 0.7 | 32.0 | 12.1 | 10 | 9 | 0.21 |
| 61 | 0.7 | 34.5 | 12.1 | 9 | 8 | 0.21 |
Standards & approvals
ComplianceManufactured to IS 7098 Part 1, IEC 60502-1, BS 5467, AS/NZS 4026, AS/NZS 5000.1, and tested in APAR's NABL-accredited laboratory. Test certificates and detailed technical particulars are issued on request — please confirm the standard your project is tendered against.
IS 7098 Part 1IEC 60502-1BS 5467AS/NZS 4026AS/NZS 5000.1
Applications
Where it's usedControl cables are primarily used with controlIndicationAlarm equipment for switchgearsSimilar power apparatuses in power stationsSubstations
Not sure which size you need?
Open calculator →Use the APAR Wire-Size Calculator to size a circuit in seconds.
Documents
DownloadsFAQs
Good to knowWhat are the main applications?+
Typical applications include control cables are primarily used with control, indication, alarm equipment for switchgears, similar power apparatuses in power stations. Contact our technical team to confirm suitability for your specification.
Where are these cables typically used?+
Control cables are primarily used with control, indication and alarm equipment for switchgears and similar power apparatuses in power stations and substations.
How do I get pricing or more details?+
Use the enquiry form on this page or the Request a Quote option, and APAR's team will respond with availability and details for your requirement.
